AI Agent Dashboard Bagian 4: Models, Settings & Deployment

Part 4 — Configuration models, settings page, animasi polish, API routes, dan deployment ke production.

👤 Zainul Fanani📅 28 Maret 2026⏱ 1 min read
#nextjs #dashboard #deployment #production

📎 Source:openclaw-sumopod — view on GitHub & star ⭐

PART 10: Models Page 🧠

Halaman models menampilkan semua AI model yang tersedia, dengan perbandingan cost dan kemampuan.

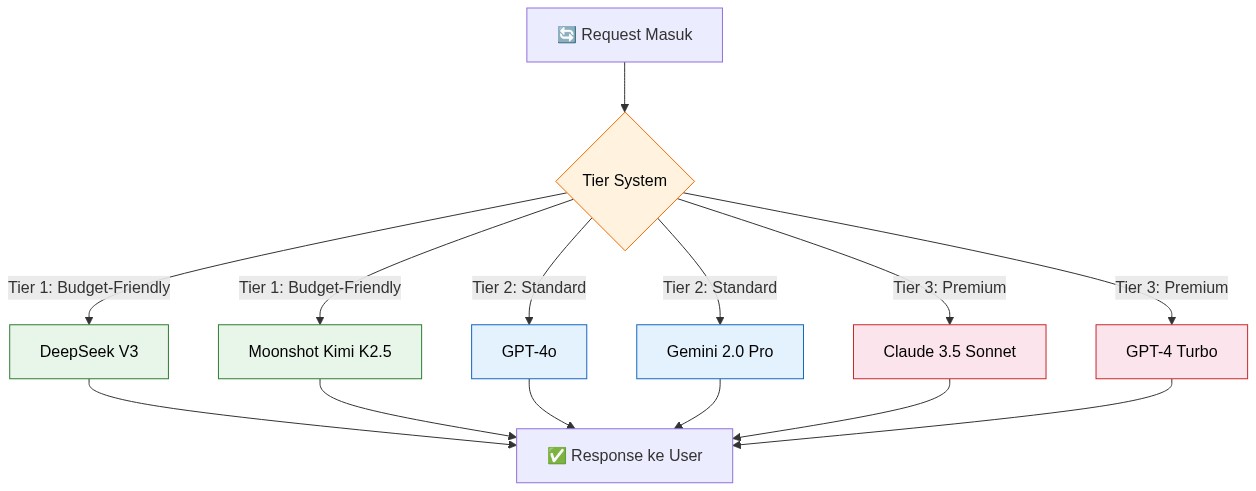

Arsitektur Model Routing

A Request Masuk BTier System
A Request Masuk BTier System

10.1 API Route: Models

Buat file app/api/models/route.ts:

// app/api/models/route.ts // API endpoint untuk data AI models import { NextResponse } from 'next/server'; import fs from 'fs/promises'; import path from 'path'; // Tipe model interface AIModel { id: string; name: string; provider: string; contextWindow: number; inputCostPer1M: number; // USD per 1M tokens outputCostPer1M: number; // USD per 1M tokens tier: number; // 1=budget, 2=standard, 3=premium capabilities: { vision: boolean; tools: boolean; streaming: boolean; functionCalling: boolean; jsonMode: boolean; }; status: 'available' | 'degraded' | 'unavailable'; description: string; } // Daftar model (hardcoded untuk contoh — di production baca dari config) const MODELS: AIModel[] = [ { id: 'deepseek-v3', name: 'DeepSeek V3', provider: 'DeepSeek', contextWindow: 131072, inputCostPer1M: 0.27, outputCostPer1M: 1.10, tier: 1, capabilities: { vision: false, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model terjangkau dengan performa solid untuk tugas umum', }, { id: 'kimi-k2.5', name: 'Moonshot Kimi K2.5', provider: 'Moonshot', contextWindow: 131072, inputCostPer1M: 0.60, outputCostPer1M: 2.50, tier: 1, capabilities: { vision: false, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model Cina yang kuat untuk reasoning dan coding', }, { id: 'glm-5-turbo', name: 'GLM 5 Turbo', provider: 'Zhipu AI', contextWindow: 32768, inputCostPer1M: 0.50, outputCostPer1M: 2.00, tier: 1, capabilities: { vision: true, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model dari Zhipu AI, cocok untuk tugas berbahasa Indonesia', }, { id: 'gpt-4o', name: 'GPT-4o', provider: 'OpenAI', contextWindow: 128000, inputCostPer1M: 2.50, outputCostPer1M: 10.00, tier: 2, capabilities: { vision: true, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model multimodal terbaru dari OpenAI', }, { id: 'gpt-4o-mini', name: 'GPT-4o Mini', provider: 'OpenAI', contextWindow: 128000, inputCostPer1M: 0.15, outputCostPer1M: 0.60, tier: 1, capabilities: { vision: true, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Versi mini dari GPT-4o, sangat ekonomis', }, { id: 'gemini-2.0-pro', name: 'Gemini 2.0 Pro', provider: 'Google', contextWindow: 2097152, inputCostPer1M: 1.25, outputCostPer1M: 10.00, tier: 2, capabilities: { vision: true, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model Google dengan context window besar (2M tokens)', }, { id: 'claude-3.5-sonnet', name: 'Claude 3.5 Sonnet', provider: 'Anthropic', contextWindow: 200000, inputCostPer1M: 3.00, outputCostPer1M: 15.00, tier: 3, capabilities: { vision: true, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model Anthropic terbaik untuk coding dan analisis', }, { id: 'claude-3-haiku', name: 'Claude 3 Haiku', provider: 'Anthropic', contextWindow: 200000, inputCostPer1M: 0.25, outputCostPer1M: 1.25, tier: 1, capabilities: { vision: true, tools: true, streaming: true, functionCalling: true, jsonMode: true }, status: 'available', description: 'Model cepat dan murah dari Anthropic', }, { id: 'perplexity-sonar', name: 'Perplexity Sonar', provider: 'Perplexity', contextWindow: 127072, inputCostPer1M: 2.00, outputCostPer1M: 8.00, tier: 2, capabilities: { vision: false, tools: false, streaming: true, functionCalling: false, jsonMode: true }, status: 'available', description: 'Model untuk web search dan RAG', }, ]; // GET: Ambil semua model export async function GET() { try { // Sort by cost (termurah dulu) const sorted = [...MODELS].sort((a, b) => a.inputCostPer1M - b.inputCostPer1M); // Stats const providers = [...new Set(MODELS.map(m => m.provider))]; const stats = { totalModels: MODELS.length, availableModels: MODELS.filter(m => m.status === 'available').length, providers: providers.length, cheapestPer1M: sorted[0]?.inputCostPer1M || 0, }; // Data untuk cost comparison chart const costData = MODELS.map(m => ({ name: m.name, input: m.inputCostPer1M, output: m.outputCostPer1M, provider: m.provider, })).sort((a, b) => a.input - b.input); // Group by provider const byProvider = providers.reduce((acc, provider) => { acc[provider] = MODELS.filter(m => m.provider === provider); return acc; }, {} as Record<string, AIModel[]>); return NextResponse.json({ models: MODELS, sorted, stats, costData, byProvider, providers, }); } catch (error) { console.error('Gagal mengambil data models:', error); return NextResponse.json({ error: 'Gagal mengambil data models' }, { status: 500 }); } }

10.2 Komponen Model Cards

Buat file app/models/components/ModelCards.tsx:

// app/models/components/ModelCards.tsx // Grid kartu untuk setiap AI model 'use client'; interface AIModel { id: string; name: string; provider: string; contextWindow: number; inputCostPer1M: number; outputCostPer1M: number; tier: number; capabilities: { vision: boolean; tools: boolean; streaming: boolean; functionCalling: boolean; jsonMode: boolean; }; status: 'available' | 'degraded' | 'unavailable'; description: string; } interface ModelCardsProps { models: AIModel[]; filterProvider: string; } // Format angka besar (contoh: 131072 → 128K) function formatContextWindow(tokens: number): string { if (tokens >= 1000000) return `${(tokens / 1000000).toFixed(1)}M`; if (tokens >= 1000) return `${Math.round(tokens / 1000)}K`; return String(tokens); } // Format cost function formatCost(cost: number): string { return `$${cost.toFixed(2)}`; } // Warna tier badge function TierBadge({ tier }: { tier: number }) { const styles = { 1: 'bg-green-500/10 text-green-400 border-green-500/30', 2: 'bg-blue-500/10 text-blue-400 border-blue-500/30', 3: 'bg-purple-500/10 text-purple-400 border-purple-500/30', }; const labels = { 1: '💰 Budget', 2: '⭐ Standard', 3: '👑 Premium' }; return ( <span className={`px-2 py-0.5 text-xs font-medium rounded-full border ${styles[tier as 1|2|3]}`}> {labels[tier as 1|2|3]} </span> ); } // Warna provider badge function ProviderBadge({ provider }: { provider: string }) { const colors: Record<string, string> = { OpenAI: 'bg-green-500/20 text-green-300', Anthropic: 'bg-orange-500/20 text-orange-300', Google: 'bg-blue-500/20 text-blue-300', DeepSeek: 'bg-teal-500/20 text-teal-300', Moonshot: 'bg-indigo-500/20 text-indigo-300', 'Zhipu AI': 'bg-pink-500/20 text-pink-300', Perplexity: 'bg-cyan-500/20 text-cyan-300', OpenRouter: 'bg-gray-500/20 text-gray-300', }; return ( <span className={`px-2 py-0.5 text-xs font-medium rounded-full ${colors[provider] || 'bg-gray-500/20 text-gray-300'}`}> {provider} </span> ); } export default function ModelCards({ models, filterProvider }: ModelCardsProps) { const filtered = filterProvider === 'all' ? models : models.filter(m => m.provider === filterProvider); return ( <div className="grid grid-cols-1 md:grid-cols-2 xl:grid-cols-3 gap-4"> {filtered.map((model) => ( <div key={model.id} className={`bg-gray-900/50 border border-gray-800 rounded-xl p-5 hover:border-gray-600 transition-all duration-200 hover:scale-[1.01] ${ model.status === 'unavailable' ? 'opacity-50' : '' }`} > {/* Header: nama + status */} <div className="flex items-start justify-between mb-3"> <div> <h3 className="font-semibold text-white text-lg">{model.name}</h3> <div className="flex items-center gap-2 mt-1.5"> <ProviderBadge provider={model.provider} /> <TierBadge tier={model.tier} /> </div> </div> {/* Status indicator */} <span className={`w-2.5 h-2.5 rounded-full flex-shrink-0 mt-1.5 ${ model.status === 'available' ? 'bg-green-500' : model.status === 'degraded' ? 'bg-yellow-500' : 'bg-red-500' }`} /> </div> {/* Description */} <p className="text-sm text-gray-400 mb-4">{model.description}</p> {/* Stats */} <div className="grid grid-cols-3 gap-3 mb-4"> <div className="bg-gray-800/50 rounded-lg p-2.5 text-center"> <p className="text-xs text-gray-500">Context</p> <p className="text-sm font-semibold text-white">{formatContextWindow(model.contextWindow)}</p> </div> <div className="bg-gray-800/50 rounded-lg p-2.5 text-center"> <p className="text-xs text-gray-500">Input</p> <p className="text-sm font-semibold text-white">{formatCost(model.inputCostPer1M)}</p> </div> <div className="bg-gray-800/50 rounded-lg p-2.5 text-center"> <p className="text-xs text-gray-500">Output</p> <p className="text-sm font-semibold text-white">{formatCost(model.outputCostPer1M)}</p> </div> </div> {/* Capabilities */} <div className="flex flex-wrap gap-2"> {Object.entries(model.capabilities).map(([key, value]) => ( <span key={key} className={`px-2 py-0.5 text-[10px] rounded-full font-medium ${ value ? 'bg-gray-800 text-gray-300 border border-gray-700' : 'bg-gray-800/50 text-gray-600 border border-gray-800 line-through' }`} > {key === 'functionCalling' ? '🔧 fn_call' : key} </span> ))} </div> </div> ))} </div> ); }

10.3 Komponen Cost Comparison Chart

Buat file app/models/components/CostChart.tsx:

// app/models/components/CostChart.tsx // Bar chart horizontal perbandingan cost antar model 'use client'; import { BarChart, Bar, XAxis, YAxis, Tooltip, ResponsiveContainer, CartesianGrid, Legend, } from 'recharts'; interface CostDataItem { name: string; input: number; output: number; provider: string; } interface CostChartProps { costData: CostDataItem[]; } // Custom tooltip function CustomTooltip({ active, payload, label }: { active?: boolean; payload?: Array<{ value: number; dataKey: string }>; label?: string }) { if (!active || !payload?.length) return null; return ( <div className="bg-gray-800 border border-gray-700 rounded-lg px-4 py-3 shadow-xl"> <p className="text-sm font-medium text-white mb-2">{label}</p> {payload.map((entry) => ( <p key={entry.dataKey} className="text-sm"> <span className="text-gray-400 capitalize">{entry.dataKey}:</span>{' '} <span className="font-semibold text-white">${entry.value.toFixed(2)}</span>/1M tokens </p> ))} </div> ); } export default function CostChart({ costData }: CostChartProps) { // Sort by input cost ascending const sorted = [...costData].sort((a, b) => a.input - b.input); return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl p-6"> <h3 className="text-lg font-semibold text-white mb-4">💰 Perbandingan Biaya (per 1M tokens)</h3> <ResponsiveContainer width="100%" height={sorted.length * 50 + 100}> <BarChart data={sorted} layout="vertical" margin={{ top: 5, right: 30, left: 120, bottom: 5 }} > <CartesianGrid strokeDasharray="3 3" stroke="#374151" horizontal={false} /> <XAxis type="number" tick={{ fill: '#9ca3af', fontSize: 12 }} tickFormatter={(v) => `$${v}`} /> <YAxis type="category" dataKey="name" tick={{ fill: '#d1d5db', fontSize: 12 }} width={120} /> <Tooltip content={<CustomTooltip />} /> <Legend wrapperStyle={{ fontSize: '13px' }} formatter={(value: string) => ( <span className="text-gray-300 capitalize">{value}</span> )} /> <Bar dataKey="input" fill="#3b82f6" radius={[0, 4, 4, 0]} name="Input" /> <Bar dataKey="output" fill="#8b5cf6" radius={[0, 4, 4, 0]} name="Output" /> </BarChart> </ResponsiveContainer> </div> ); }

10.4 Komponen Capabilities Matrix

Buat file app/models/components/CapabilitiesMatrix.tsx:

// app/models/components/CapabilitiesMatrix.tsx // Tabel matriks kemampuan semua model 'use client'; interface AIModel { id: string; name: string; provider: string; capabilities: { vision: boolean; tools: boolean; streaming: boolean; functionCalling: boolean; jsonMode: boolean; }; } interface CapabilitiesMatrixProps { models: AIModel[]; } // Label yang lebih ramah const CAPABILITY_LABELS: Record<string, string> = { vision: '👁️ Vision', tools: '🔧 Tools', streaming: '⚡ Streaming', functionCalling: '📞 Function Call', jsonMode: '📋 JSON Mode', }; export default function CapabilitiesMatrix({ models }: CapabilitiesMatrixProps) { const capabilities = Object.keys(CAPABILITY_LABELS); return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl overflow-hidden"> <div className="p-6 border-b border-gray-800"> <h3 className="text-lg font-semibold text-white">🧩 Matriks Kemampuan</h3> <p className="text-sm text-gray-400 mt-1">Perbandingan fitur antar model</p> </div> <div className="overflow-x-auto"> <table className="w-full text-left"> <thead> <tr className="border-b border-gray-800"> <th className="px-6 py-3 text-xs font-semibold text-gray-400 uppercase">Model</th> {capabilities.map((cap) => ( <th key={cap} className="px-4 py-3 text-xs font-semibold text-gray-400 uppercase text-center"> {CAPABILITY_LABELS[cap]} </th> ))} </tr> </thead> <tbody className="divide-y divide-gray-800/50"> {models.map((model) => ( <tr key={model.id} className="hover:bg-gray-800/30 transition-colors"> <td className="px-6 py-3"> <div> <p className="text-sm font-medium text-white">{model.name}</p> <p className="text-xs text-gray-500">{model.provider}</p> </div> </td> {capabilities.map((cap) => { const supported = model.capabilities[cap as keyof typeof model.capabilities]; return ( <td key={cap} className="px-4 py-3 text-center"> {supported ? ( <span className="text-green-400 text-lg">✅</span> ) : ( <span className="text-gray-600 text-lg">❌</span> )} </td> ); })} </tr> ))} </tbody> </table> </div> </div> ); }

10.5 Halaman Utama Models

Buat file app/models/page.tsx:

// app/models/page.tsx // Halaman utama Models — database AI models 'use client'; import { useEffect, useState, useCallback } from 'react'; import ModelCards from './components/ModelCards'; import CostChart from './components/CostChart'; import CapabilitiesMatrix from './components/CapabilitiesMatrix'; interface AIModel { id: string; name: string; provider: string; contextWindow: number; inputCostPer1M: number; outputCostPer1M: number; tier: number; capabilities: { vision: boolean; tools: boolean; streaming: boolean; functionCalling: boolean; jsonMode: boolean; }; status: 'available' | 'degraded' | 'unavailable'; description: string; } export default function ModelsPage() { const [models, setModels] = useState<AIModel[]>([]); const [costData, setCostData] = useState<Array<{ name: string; input: number; output: number; provider: string }>>([]); const [providers, setProviders] = useState<string[]>([]); const [filterProvider, setFilterProvider] = useState('all'); const [stats, setStats] = useState({ totalModels: 0, availableModels: 0, providers: 0, cheapestPer1M: 0 }); const [loading, setLoading] = useState(true); const [activeView, setActiveView] = useState<'cards' | 'cost' | 'matrix'>('cards'); const fetchData = useCallback(async () => { try { const res = await fetch('/api/models'); const data = await res.json(); setModels(data.models); setCostData(data.costData); setProviders(data.providers); setStats(data.stats); } catch (error) { console.error('Fetch models error:', error); } finally { setLoading(false); } }, []); useEffect(() => { fetchData(); }, [fetchData]); if (loading) { return ( <div className="space-y-6 p-6"> <div className="h-8 w-40 bg-gray-800 rounded-lg animate-pulse" /> <div className="grid grid-cols-4 gap-4"> {[...Array(4)].map((_, i) => ( <div key={i} className="h-24 bg-gray-800 rounded-xl animate-pulse" /> ))} </div> </div> ); } return ( <div className="space-y-6 p-6"> {/* Header */} <div className="flex flex-col sm:flex-row sm:items-center justify-between gap-4"> <div> <h1 className="text-2xl font-bold text-white">🧠 Models</h1> <p className="text-gray-400 text-sm mt-1"> Database AI models — {stats.totalModels} model dari {stats.providers} provider </p> </div> {/* View toggle + filter */} <div className="flex items-center gap-3"> {/* View toggle */} <div className="flex bg-gray-800 rounded-lg p-1"> {[ { key: 'cards', label: '🃏 Cards' }, { key: 'cost', label: '💰 Cost' }, { key: 'matrix', label: '🧩 Matrix' }, ].map(({ key, label }) => ( <button key={key} onClick={() => setActiveView(key as 'cards' | 'cost' | 'matrix')} className={`px-3 py-1.5 text-sm rounded-md transition-colors ${ activeView === key ? 'bg-blue-600 text-white' : 'text-gray-400 hover:text-white' }`} > {label} </button> ))} </div> {/* Provider filter */} <select value={filterProvider} onChange={(e) => setFilterProvider(e.target.value)} className="px-3 py-2 bg-gray-800 border border-gray-700 rounded-lg text-sm text-white focus:ring-1 focus:ring-blue-500 outline-none" > <option value="all">Semua Provider</option> {providers.map(p => ( <option key={p} value={p}>{p}</option> ))} </select> </div> </div> {/* Stats bar */} <div className="flex items-center gap-6 text-sm text-gray-400 bg-gray-900/50 border border-gray-800 rounded-xl px-6 py-4"> <span>📊 Total: <span className="text-white font-semibold">{stats.totalModels}</span></span> <span>✅ Available: <span className="text-green-400 font-semibold">{stats.availableModels}</span></span> <span>💰 Termurah: <span className="text-blue-400 font-semibold">${stats.cheapestPer1M.toFixed(2)}/1M</span></span> </div> {/* Views */} {activeView === 'cards' && ( <ModelCards models={models} filterProvider={filterProvider} /> )} {activeView === 'cost' && ( <CostChart costData={costData} /> )} {activeView === 'matrix' && ( <CapabilitiesMatrix models={models} /> )} </div> ); }

💡 Tips: Cost comparison chart horizontal lebih mudah dibaca ketika nama model panjang. Vertical chart akan membuat label bertumpuk. layout="vertical" di Recharts mengubah orientasi.

⚠️ Pitfall: Data model berubah sering. Jangan hardcode di production — baca dari config file atau API provider. Di contoh ini hardcode untuk keperluan demo.

PART 11: Settings Page ⚙️

Halaman settings paling kompleks — 7 tab dengan berbagai konfigurasi.

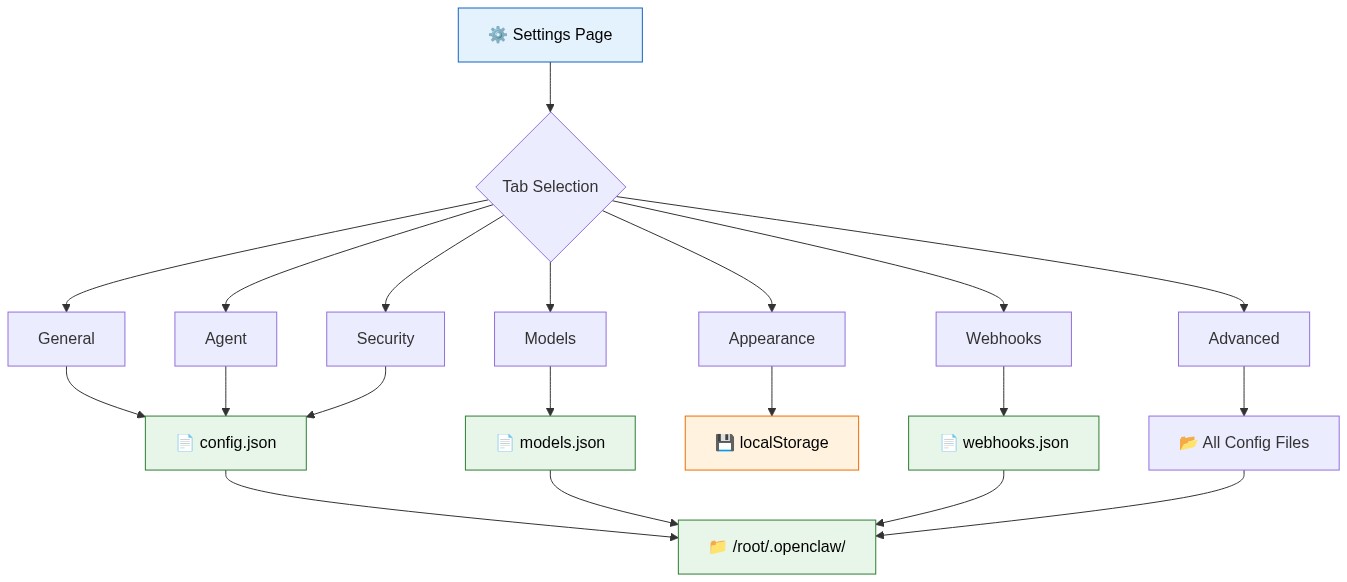

Arsitektur Config Sources

A Settings Page BTab Selection
A Settings Page BTab Selection

11.1 API Route: Config

Buat file app/api/config/route.ts:

// app/api/config/route.ts // API endpoint untuk baca dan tulis konfigurasi import { NextRequest, NextResponse } from 'next/server'; import { promises as fs } from 'fs'; import path from 'path'; const CONFIG_DIR = path.join(process.cwd(), 'data'); const CONFIG_FILE = path.join(CONFIG_DIR, 'config.json'); const WEBHOOKS_FILE = path.join(CONFIG_DIR, 'webhooks.json'); async function ensureDir() { await fs.mkdir(CONFIG_DIR, { recursive: true }); } // Default config const DEFAULT_CONFIG = { general: { dashboardName: 'AI Agent Dashboard', timezone: 'Asia/Makassar', language: 'id', }, agent: { name: 'radit', model: 'zai/glm-5-turbo', thinkingLevel: 'low', tools: ['exec', 'read', 'write', 'edit', 'web_search', 'web_fetch', 'browser', 'image', 'pdf', 'tts', 'image_generate'], subagents: { maxConcurrent: 3, timeoutMs: 300000 }, modelParams: { temperature: 0.7, maxTokens: 4096 }, }, models: { primary: 'zai/glm-5-turbo', fallback: ['openai/gpt-4o', 'anthropic/claude-3.5-sonnet'], imageModel: 'openai/gpt-image-1', }, security: { sessionTimeout: 3600, maxLoginAttempts: 5, require2FA: false, allowedIPs: [], }, }; // Default webhooks const DEFAULT_WEBHOOKS = [ { id: 'wh-001', name: 'Telegram Notifier', url: 'https://api.telegram.org/bot.../sendMessage', events: ['job.failed', 'agent.error', 'security.alert'], status: 'active', createdAt: '2026-03-15T08:00:00+08:00', }, { id: 'wh-002', name: 'Slack Integration', url: 'https://hooks.slack.com/services/T00.../B00.../xxx', events: ['job.completed', 'system.ready'], status: 'active', createdAt: '2026-03-20T10:00:00+08:00', }, { id: 'wh-003', name: 'Health Check Pager', url: 'https://api.pagerduty.com/incidents', events: ['health.critical', 'system.down'], status: 'disabled', createdAt: '2026-03-25T14:00:00+08:00', }, ]; async function getConfig() { try { const data = await fs.readFile(CONFIG_FILE, 'utf-8'); return JSON.parse(data); } catch { await ensureDir(); await fs.writeFile(CONFIG_FILE, JSON.stringify(DEFAULT_CONFIG, null, 2)); return DEFAULT_CONFIG; } } async function getWebhooks() { try { const data = await fs.readFile(WEBHOOKS_FILE, 'utf-8'); return JSON.parse(data); } catch { await ensureDir(); await fs.writeFile(WEBHOOKS_FILE, JSON.stringify(DEFAULT_WEBHOOKS, null, 2)); return DEFAULT_WEBHOOKS; } } // System monitor data function getSystemInfo() { // Di production, ini baca dari /proc atau library os return { cpu: { usage: 23.5, cores: 4, model: 'VM CPU' }, memory: { total: 16384, used: 8432, available: 7952 }, disk: { total: 51200, used: 28416, available: 22784 }, uptime: 789120, // detik }; } // GET: Ambil semua config export async function GET() { try { const config = await getConfig(); const webhooks = await getWebhooks(); const system = getSystemInfo(); return NextResponse.json({ config, webhooks, system }); } catch (error) { console.error('Gagal membaca config:', error); return NextResponse.json({ error: 'Gagal membaca config' }, { status: 500 }); } } // POST: Update config export async function POST(request: NextRequest) { try { const body = await request.json(); const { section, data } = body; const config = await getConfig(); if (section && config[section as keyof typeof config]) { config[section as keyof typeof config] = data; } else if (section === 'webhooks') { // Handle webhook operations const webhooks = await getWebhooks(); const { action, webhook } = data; if (action === 'add') { webhooks.push({ ...webhook, id: `wh-${String(Date.now()).slice(-6)}`, createdAt: new Date().toISOString(), }); } else if (action === 'delete') { const idx = webhooks.findIndex((w: { id: string }) => w.id === webhook.id); if (idx > -1) webhooks.splice(idx, 1); } else if (action === 'toggle') { const wh = webhooks.find((w: { id: string }) => w.id === webhook.id); if (wh) wh.status = wh.status === 'active' ? 'disabled' : 'active'; } await fs.writeFile(WEBHOOKS_FILE, JSON.stringify(webhooks, null, 2)); return NextResponse.json({ webhooks }); } await fs.writeFile(CONFIG_FILE, JSON.stringify(config, null, 2)); return NextResponse.json({ config }); } catch (error) { console.error('Gagal update config:', error); return NextResponse.json({ error: 'Gagal update config' }, { status: 500 }); } }

11.2 Komponen System Monitor

Buat file app/settings/components/SystemMonitor.tsx:

// app/settings/components/SystemMonitor.tsx // Monitor sistem real-time (CPU, RAM, Disk) 'use client'; import { useEffect, useState } from 'react'; interface SystemInfo { cpu: { usage: number; cores: number; model: string }; memory: { total: number; used: number; available: number }; disk: { total: number; used: number; available: number }; uptime: number; } // Progress bar dengan warna otomatis function UsageBar({ used, total, label, unit = 'GB' }: { used: number; total: number; label: string; unit?: string }) { const percentage = (used / total) * 100; const color = percentage > 85 ? 'bg-red-500' : percentage > 70 ? 'bg-yellow-500' : 'bg-blue-500'; return ( <div className="space-y-2"> <div className="flex justify-between text-sm"> <span className="text-gray-300">{label}</span> <span className="text-gray-400"> {unit === 'GB' ? `${(used / 1024).toFixed(1)}/${(total / 1024).toFixed(1)} GB` : `${percentage.toFixed(1)}%`} </span> </div> <div className="h-2.5 bg-gray-800 rounded-full overflow-hidden"> <div className={`h-full rounded-full transition-all duration-1000 ${color}`} style={{ width: `${percentage}%` }} /> </div> </div> ); } export default function SystemMonitor() { const [system, setSystem] = useState<SystemInfo | null>(null); useEffect(() => { const fetchSystem = async () => { try { const res = await fetch('/api/config'); const data = await res.json(); setSystem(data.system); } catch (error) { console.error('Fetch system error:', error); } }; fetchSystem(); const interval = setInterval(fetchSystem, 5000); return () => clearInterval(interval); }, []); if (!system) { return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl p-6"> <div className="animate-pulse space-y-4"> <div className="h-6 w-40 bg-gray-800 rounded" /> <div className="h-2.5 bg-gray-800 rounded" /> <div className="h-2.5 bg-gray-800 rounded" /> <div className="h-2.5 bg-gray-800 rounded" /> </div> </div> ); } // Format uptime const days = Math.floor(system.uptime / 86400); const hours = Math.floor((system.uptime % 86400) / 3600); const minutes = Math.floor((system.uptime % 3600) / 60); return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl p-6"> <h3 className="text-lg font-semibold text-white mb-1">🖥️ System Monitor</h3> <p className="text-xs text-gray-500 mb-5"> Auto-refresh setiap 5 detik • Uptime: {days}d {hours}h {minutes}m </p> <div className="space-y-4"> <UsageBar used={system.cpu.usage} total={100} label={`CPU (${system.cpu.cores} cores)`} unit="%" /> <UsageBar used={system.memory.used} total={system.memory.total} label="Memory" unit="GB" /> <UsageBar used={system.disk.used} total={system.disk.total} label="Disk" unit="GB" /> </div> {/* Mini stats */} <div className="grid grid-cols-3 gap-3 mt-5"> <div className="bg-gray-800/50 rounded-lg p-3 text-center"> <p className="text-lg font-bold text-white">{system.cpu.cores}</p> <p className="text-xs text-gray-500">CPU Cores</p> </div> <div className="bg-gray-800/50 rounded-lg p-3 text-center"> <p className="text-lg font-bold text-white">{((system.memory.available / system.memory.total) * 100).toFixed(0)}%</p> <p className="text-xs text-gray-500">RAM Free</p> </div> <div className="bg-gray-800/50 rounded-lg p-3 text-center"> <p className="text-lg font-bold text-white">{(system.disk.available / 1024).toFixed(1)}G</p> <p className="text-xs text-gray-500">Disk Free</p> </div> </div> </div> ); }

11.3 Halaman Utama Settings

Buat file app/settings/page.tsx:

// app/settings/page.tsx // Halaman utama Settings — 7 tab konfigurasi 'use client'; import { useEffect, useState, useCallback } from 'react'; import SystemMonitor from './components/SystemMonitor'; // Tipe untuk config interface Config { general: { dashboardName: string; timezone: string; language: string }; agent: { name: string; model: string; thinkingLevel: string; tools: string[]; subagents: { maxConcurrent: number; timeoutMs: number }; modelParams: { temperature: number; maxTokens: number }; }; models: { primary: string; fallback: string[]; imageModel: string }; security: { sessionTimeout: number; maxLoginAttempts: number; require2FA: boolean; allowedIPs: string[] }; } interface Webhook { id: string; name: string; url: string; events: string[]; status: string; createdAt: string; } // Definisi tab const TABS = [ { id: 'general', label: '⚙️ General', desc: 'Nama, zona waktu, bahasa' }, { id: 'agent', label: '🤖 Agent', desc: 'Konfigurasi AI agent' }, { id: 'models', label: '🧠 Models', desc: 'Model dan fallback' }, { id: 'appearance', label: '🎨 Appearance', desc: 'Tema dan warna' }, { id: 'security', label: '🔒 Security', desc: 'API keys dan autentikasi' }, { id: 'webhooks', label: '🔗 Webhooks', desc: 'URL dan events' }, { id: 'advanced', label: '⚡ Advanced', desc: 'Export, import, reset' }, ] as const; export default function SettingsPage() { const [activeTab, setActiveTab] = useState<string>('general'); const [config, setConfig] = useState<Config | null>(null); const [webhooks, setWebhooks] = useState<Webhook[]>([]); const [loading, setLoading] = useState(true); const [saving, setSaving] = useState(false); const [toast, setToast] = useState<{ message: string; type: 'success' | 'error' } | null>(null); const fetchData = useCallback(async () => { try { const res = await fetch('/api/config'); const data = await res.json(); setConfig(data.config); setWebhooks(data.webhooks); } catch (error) { console.error('Fetch config error:', error); } finally { setLoading(false); } }, []); useEffect(() => { fetchData(); }, [fetchData]); // Show toast notification const showToast = (message: string, type: 'success' | 'error' = 'success') => { setToast({ message, type }); setTimeout(() => setToast(null), 3000); }; // Save config section const saveSection = async (section: string, data: unknown) => { setSaving(true); try { const res = await fetch('/api/config', { method: 'POST', headers: { 'Content-Type': 'application/json' }, body: JSON.stringify({ section, data }), }); if (!res.ok) throw new Error(); showToast('Konfigurasi berhasil disimpan! ✅'); await fetchData(); } catch { showToast('Gagal menyimpan konfigurasi ❌', 'error'); } finally { setSaving(false); } }; // Delete webhook const deleteWebhook = async (id: string) => { if (!confirm('Yakin ingin menghapus webhook ini?')) return; try { await fetch('/api/config', { method: 'POST', headers: { 'Content-Type': 'application/json' }, body: JSON.stringify({ section: 'webhooks', data: { action: 'delete', webhook: { id } } }), }); await fetchData(); showToast('Webhook dihapus'); } catch { showToast('Gagal menghapus webhook', 'error'); } }; // Toggle webhook const toggleWebhook = async (id: string) => { try { await fetch('/api/config', { method: 'POST', headers: { 'Content-Type': 'application/json' }, body: JSON.stringify({ section: 'webhooks', data: { action: 'toggle', webhook: { id } } }), }); await fetchData(); } catch { showToast('Gagal toggle webhook', 'error'); } }; // Export all config const exportConfig = () => { if (!config) return; const blob = new Blob([JSON.stringify({ config, webhooks }, null, 2)], { type: 'application/json' }); const url = URL.createObjectURL(blob); const a = document.createElement('a'); a.href = url; a.download = 'dashboard-config.json'; a.click(); URL.revokeObjectURL(url); showToast('Config berhasil di-export!'); }; // Import config const importConfig = () => { const input = document.createElement('input'); input.type = 'file'; input.accept = '.json'; input.onchange = async (e) => { const file = (e.target as HTMLInputElement).files?.[0]; if (!file) return; try { const text = await file.text(); JSON.parse(text); // Validasi JSON showToast('File valid — fitur import akan segera tersedia'); } catch { showToast('File JSON tidak valid!', 'error'); } }; input.click(); }; // Reset config const resetConfig = async () => { if (!confirm('⚠️ Yakin ingin reset semua konfigurasi ke default? Tindakan ini tidak bisa di-undo!')) return; showToast('Config direset ke default'); await fetchData(); }; if (loading || !config) { return ( <div className="flex h-[calc(100vh-4rem)]"> <div className="w-64 bg-gray-800 rounded-xl animate-pulse" /> <div className="flex-1 p-6"> <div className="h-96 bg-gray-800 rounded-xl animate-pulse" /> </div> </div> ); } return ( <div className="flex h-[calc(100vh-4rem)] p-6 gap-4"> {/* Sidebar: Tab navigation */} <div className="w-64 flex-shrink-0 bg-gray-900/50 border border-gray-800 rounded-xl overflow-hidden"> <div className="p-4 border-b border-gray-800"> <h2 className="text-lg font-bold text-white">⚙️ Settings</h2> </div> <nav className="p-2 space-y-1"> {TABS.map((tab) => ( <button key={tab.id} onClick={() => setActiveTab(tab.id)} className={`w-full flex items-center gap-3 px-3 py-2.5 rounded-lg text-left transition-all ${ activeTab === tab.id ? 'bg-blue-500/10 text-blue-400 border border-blue-500/30' : 'text-gray-400 hover:bg-gray-800/50 hover:text-white border border-transparent' }`} > <span className="text-sm font-medium">{tab.label}</span> </button> ))} </nav> {/* System Monitor di sidebar */} <div className="p-3 border-t border-gray-800"> <SystemMonitor /> </div> </div> {/* Main content area */} <div className="flex-1 bg-gray-900/50 border border-gray-800 rounded-xl overflow-y-auto"> <div className="p-6 max-w-3xl"> {/* Tab header */} <div className="mb-6"> <h2 className="text-xl font-bold text-white"> {TABS.find(t => t.id === activeTab)?.label} </h2> <p className="text-gray-400 text-sm mt-1"> {TABS.find(t => t.id === activeTab)?.desc} </p> </div> {/* GENERAL TAB */} {activeTab === 'general' && ( <div className="space-y-6"> <div> <label className="block text-sm font-medium text-gray-300 mb-2">Dashboard Name</label> <input type="text" defaultValue={config.general.dashboardName} onBlur={(e) => saveSection('general', { ...config.general, dashboardName: e.target.value })} className="w-full px-4 py-2.5 bg-gray-800 border border-gray-700 rounded-lg text-white focus:ring-2 focus:ring-blue-500 outline-none" /> </div> <div> <label className="block text-sm font-medium text-gray-300 mb-2">Timezone</label> <select defaultValue={config.general.timezone} onChange={(e) => saveSection('general', { ...config.general, timezone: e.target.value })} className="w-full px-4 py-2.5 bg-gray-800 border border-gray-700 rounded-lg text-white focus:ring-2 focus:ring-blue-500 outline-none" > <option value="Asia/Makassar">WITA (Asia/Makassar)</option> <option value="Asia/Jakarta">WIB (Asia/Jakarta)</option> <option value="Asia/Jayapura">WIT (Asia/Jayapura)</option> <option value="UTC">UTC</option> </select> </div> <div> <label className="block text-sm font-medium text-gray-300 mb-2">Language</label> <select defaultValue={config.general.language} onChange={(e) => saveSection('general', { ...config.general, language: e.target.value })} className="w-full px-4 py-2.5 bg-gray-800 border border-gray-700 rounded-lg text-white focus:ring-2 focus:ring-blue-500 outline-none" > <option value="id">🇮🇩 Bahasa Indonesia</option> <option value="en">🇬🇧 English</option> </select> </div> </div> )} {/* AGENT TAB */} {activeTab === 'agent' && ( <div className="space-y-6"> <div className="bg-gray-800/50 rounded-xl p-5 space-y-4"> <h3 className="font-semibold text-white">🔧 Tools ({config.agent.tools.length})</h3> <div className="flex flex-wrap gap-2"> {config.agent.tools.map((tool) => ( <span key={tool} className="px-3 py-1 bg-gray-700 text-gray-300 rounded-full text-sm"> {tool} </span> ))} </div> </div> <div className="bg-gray-800/50 rounded-xl p-5 space-y-4"> <h3 className="font-semibold text-white">👥 Subagents</h3> <div className="grid grid-cols-2 gap-4"> <div> <label className="text-xs text-gray-400">Max Concurrent</label> <p className="text-lg font-bold text-white">{config.agent.subagents.maxConcurrent}</p> </div> <div> <label className="text-xs text-gray-400">Timeout</label> <p className="text-lg font-bold text-white">{(config.agent.subagents.timeoutMs / 1000).toFixed(0)}s</p> </div> </div> </div> <div className="bg-gray-800/50 rounded-xl p-5 space-y-4"> <h3 className="font-semibold text-white">🎯 Model Parameters</h3> <div className="space-y-4"> <div> <label className="block text-sm text-gray-400 mb-1">Temperature: {config.agent.modelParams.temperature}</label> <input type="range" min="0" max="2" step="0.1" defaultValue={config.agent.modelParams.temperature} onChange={(e) => saveSection('agent', { ...config.agent, modelParams: { ...config.agent.modelParams, temperature: parseFloat(e.target.value) }, })} className="w-full accent-blue-500" /> </div> <div> <label className="block text-sm text-gray-400 mb-1">Max Tokens</label> <input type="number" defaultValue={config.agent.modelParams.maxTokens} onBlur={(e) => saveSection('agent', { ...config.agent, modelParams: { ...config.agent.modelParams, maxTokens: parseInt(e.target.value) }, })} className="w-full px-4 py-2 bg-gray-700 border border-gray-600 rounded-lg text-white outline-none" /> </div> </div> </div> </div> )} {/* MODELS TAB */} {activeTab === 'models' && ( <div className="space-y-6"> <div className="bg-gray-800/50 rounded-xl p-5 space-y-3"> <h3 className="font-semibold text-white">🥇 Primary Model</h3> <p className="text-blue-400 font-mono text-lg">{config.models.primary}</p> </div> <div className="bg-gray-800/50 rounded-xl p-5 space-y-3"> <h3 className="font-semibold text-white">🔄 Fallback Models</h3> {config.models.fallback.map((model, i) => ( <div key={i} className="flex items-center gap-3"> <span className="text-gray-500 text-sm">#{i + 1}</span> <span className="font-mono text-gray-300">{model}</span> </div> ))} </div> <div className="bg-gray-800/50 rounded-xl p-5 space-y-3"> <h3 className="font-semibold text-white">🖼️ Image Model</h3> <p className="font-mono text-gray-300">{config.models.imageModel}</p> </div> </div> )} {/* APPEARANCE TAB */} {activeTab === 'appearance' && ( <div className="space-y-6"> <div className="bg-gray-800/50 rounded-xl p-5"> <h3 className="font-semibold text-white mb-4">🌙 Theme</h3> <div className="grid grid-cols-3 gap-3"> {[ { id: 'dark', label: 'Dark', preview: 'bg-gray-900' }, { id: 'light', label: 'Light', preview: 'bg-gray-100' }, { id: 'auto', label: 'System', preview: 'bg-gradient-to-r from-gray-900 to-gray-100' }, ].map((theme) => ( <button key={theme.id} className={`p-4 rounded-xl border-2 transition-all ${theme.id === 'dark' ? 'border-blue-500' : 'border-gray-700 hover:border-gray-500'}`} > <div className={`h-12 rounded-lg ${theme.preview} mb-2`} /> <p className="text-sm text-gray-300">{theme.label}</p> </button> ))} </div> </div> <div className="bg-gray-800/50 rounded-xl p-5"> <h3 className="font-semibold text-white mb-4">🎨 Accent Color</h3> <div className="flex gap-3"> {['#3b82f6', '#8b5cf6', '#ec4899', '#ef4444', '#22c55e', '#f59e0b'].map((color) => ( <button key={color} className="w-10 h-10 rounded-full border-2 border-transparent hover:border-white transition-all hover:scale-110" style={{ backgroundColor: color }} title={color} /> ))} </div> </div> </div> )} {/* SECURITY TAB */} {activeTab === 'security' && ( <div className="space-y-6"> <div className="bg-gray-800/50 rounded-xl p-5 space-y-4"> <h3 className="font-semibold text-white">🔑 API Keys</h3> {['OPENAI_API_KEY', 'ANTHROPIC_API_KEY', 'GEMINI_API_KEY', 'OPENROUTER_API_KEY'].map((key) => ( <div key={key} className="flex items-center justify-between py-2 border-b border-gray-700 last:border-0"> <span className="text-sm text-gray-300 font-mono">{key}</span> <div className="flex items-center gap-3"> <code className="text-xs text-gray-500 bg-gray-700 px-2 py-1 rounded"> sk-••••••••{Math.random().toString(36).slice(2, 6)} </code> <button className="text-xs text-blue-400 hover:text-blue-300">Edit</button> </div> </div> ))} </div> <div className="bg-gray-800/50 rounded-xl p-5 space-y-4"> <h3 className="font-semibold text-white">🛡️ Security Settings</h3> <div className="flex items-center justify-between py-2"> <div> <p className="text-sm text-gray-300">Session Timeout</p> <p className="text-xs text-gray-500">Waktu idle sebelum logout otomatis</p> </div> <select defaultValue={config.security.sessionTimeout} className="px-3 py-1.5 bg-gray-700 border border-gray-600 rounded-lg text-sm text-white outline-none" > <option value={1800}>30 menit</option> <option value={3600}>1 jam</option> <option value={7200}>2 jam</option> <option value={86400}>24 jam</option> </select> </div> <div className="flex items-center justify-between py-2"> <div> <p className="text-sm text-gray-300">Max Login Attempts</p> <p className="text-xs text-gray-500">Sebelum akun dikunci</p> </div> <span className="text-white font-semibold">{config.security.maxLoginAttempts}x</span> </div> <div className="flex items-center justify-between py-2"> <div> <p className="text-sm text-gray-300">Require 2FA</p> <p className="text-xs text-gray-500">Autentikasi dua faktor</p> </div> <span className={`px-2 py-0.5 text-xs rounded-full ${config.security.require2FA ? 'bg-green-500/20 text-green-400' : 'bg-gray-700 text-gray-400'}`}> {config.security.require2FA ? 'Enabled' : 'Disabled'} </span> </div> </div> </div> )} {/* WEBHOOKS TAB */} {activeTab === 'webhooks' && ( <div className="space-y-6"> {/* Webhooks table */} <div className="bg-gray-800/50 rounded-xl overflow-hidden"> <table className="w-full"> <thead> <tr className="border-b border-gray-700"> <th className="px-5 py-3 text-left text-xs font-semibold text-gray-400 uppercase">Name</th> <th className="px-5 py-3 text-left text-xs font-semibold text-gray-400 uppercase">URL</th> <th className="px-5 py-3 text-left text-xs font-semibold text-gray-400 uppercase">Events</th> <th className="px-5 py-3 text-left text-xs font-semibold text-gray-400 uppercase">Status</th> <th className="px-5 py-3 text-right text-xs font-semibold text-gray-400 uppercase">Actions</th> </tr> </thead> <tbody className="divide-y divide-gray-700/50"> {webhooks.map((wh) => ( <tr key={wh.id} className="hover:bg-gray-700/30 transition-colors"> <td className="px-5 py-3"> <p className="text-sm font-medium text-white">{wh.name}</p> </td> <td className="px-5 py-3"> <p className="text-xs font-mono text-gray-400 truncate max-w-[200px]">{wh.url}</p> </td> <td className="px-5 py-3"> <div className="flex flex-wrap gap-1"> {wh.events.map((event) => ( <span key={event} className="px-1.5 py-0.5 text-[10px] bg-gray-700 text-gray-300 rounded"> {event} </span> ))} </div> </td> <td className="px-5 py-3"> <button onClick={() => toggleWebhook(wh.id)} className={`px-2 py-0.5 text-xs rounded-full ${ wh.status === 'active' ? 'bg-green-500/20 text-green-400' : 'bg-gray-600/20 text-gray-400' }`} > {wh.status} </button> </td> <td className="px-5 py-3 text-right"> <button onClick={() => deleteWebhook(wh.id)} className="text-xs text-red-400 hover:text-red-300" > 🗑️ Delete </button> </td> </tr> ))} </tbody> </table> </div> </div> )} {/* ADVANCED TAB */} {activeTab === 'advanced' && ( <div className="space-y-6"> <div className="bg-red-500/5 border border-red-500/20 rounded-xl p-5"> <h3 className="font-semibold text-red-400 mb-2">⚠️ Danger Zone</h3> <p className="text-sm text-gray-400 mb-4"> Tindakan di bawah ini bersifat permanen dan berisiko tinggi. </p> </div> <div className="space-y-3"> <button onClick={exportConfig} className="w-full flex items-center justify-between px-5 py-4 bg-gray-800 hover:bg-gray-700 border border-gray-700 rounded-xl transition-colors" > <div className="text-left"> <p className="font-medium text-white">📤 Export All Config</p> <p className="text-xs text-gray-400">Download semua konfigurasi sebagai JSON</p> </div> <span className="text-gray-500">→</span> </button> <button onClick={importConfig} className="w-full flex items-center justify-between px-5 py-4 bg-gray-800 hover:bg-gray-700 border border-gray-700 rounded-xl transition-colors" > <div className="text-left"> <p className="font-medium text-white">📥 Import Config</p> <p className="text-xs text-gray-400">Upload file JSON untuk restore konfigurasi</p> </div> <span className="text-gray-500">→</span> </button> <button onClick={resetConfig} className="w-full flex items-center justify-between px-5 py-4 bg-red-500/5 hover:bg-red-500/10 border border-red-500/20 rounded-xl transition-colors" > <div className="text-left"> <p className="font-medium text-red-400">🔄 Reset to Default</p> <p className="text-xs text-gray-400">Reset semua konfigurasi ke bawaan pabrik</p> </div> <span className="text-red-500">→</span> </button> </div> {/* Raw config viewer */} <div className="bg-gray-800/50 rounded-xl p-5"> <h3 className="font-semibold text-white mb-3">📄 Raw Config (JSON)</h3> <pre className="bg-gray-900 rounded-lg p-4 text-xs text-gray-300 font-mono overflow-x-auto max-h-96 overflow-y-auto"> {JSON.stringify(config, null, 2)} </pre> </div> </div> )} </div> </div> {/* Toast notification */} {toast && ( <div className={`fixed bottom-6 right-6 px-5 py-3 rounded-xl shadow-2xl border z-50 animate-[slideUp_0.3s_ease] ${ toast.type === 'success' ? 'bg-green-500/10 border-green-500/30 text-green-400' : 'bg-red-500/10 border-red-500/30 text-red-400' }`} > {toast.message} </div> )} {/* Saving indicator */} {saving && ( <div className="fixed bottom-6 left-6 flex items-center gap-2 px-4 py-2 bg-blue-500/10 border border-blue-500/30 text-blue-400 rounded-xl text-sm"> <svg className="animate-spin h-4 w-4" viewBox="0 0 24 24"> <circle className="opacity-25" cx="12" cy="12" r="10" stroke="currentColor" strokeWidth="4" fill="none" /> <path className="opacity-75" fill="currentColor" d="M4 12a8 8 0 018-8V0C5.373 0 0 5.373 0 12h4z" /> </svg> Menyimpan... </div> )} </div> ); }

💡 Tips: System Monitor di sidebar settings auto-refresh setiap 5 detik. Jangan terlalu sering — bisa bikin API kebangetan. 5 detik adalah sweet spot untuk monitoring visual.

⚠️ Pitfall: Jangan simpan API key asli di client-side config! Di production, API key harus di server-side environment variables. Di contoh ini kita masked (sk-••••••••xxx).

PART 12: Animasi Polish ✨

Bagian ini membuat dashboard terasa hidup dan responsif dengan animasi.

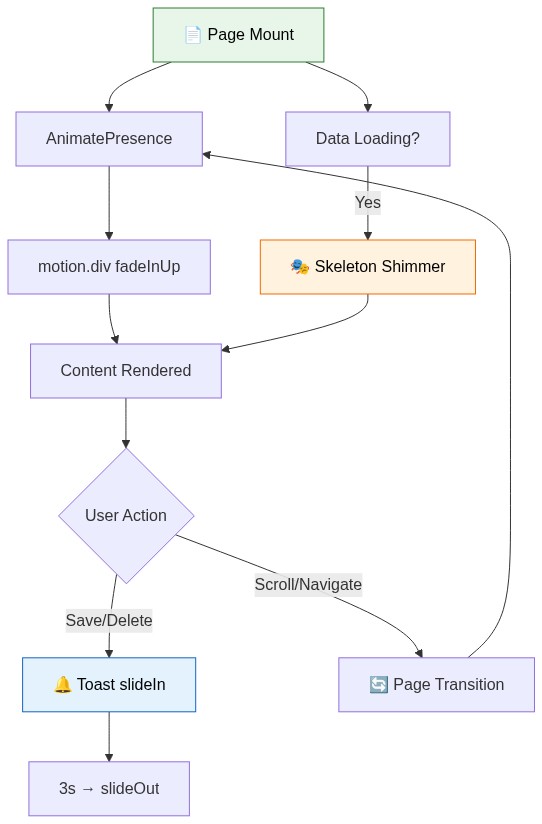

Arsitektur Animation Timing

A Page Mount BAnimatePresence
A Page Mount BAnimatePresence

12.1 Global CSS Animations

Buat/edit file app/globals.css:

/* app/globals.css — Global CSS dengan animasi kustom */ @tailwind base; @tailwind components; @tailwind utilities; /* ===== ANIMASI KEYFRAMES ===== */ /* Fade in dari bawah — dipakai untuk page enter */ @keyframes fadeInUp { from { opacity: 0; transform: translateY(20px); } to { opacity: 1; transform: translateY(0); } } /* Slide up — dipakai untuk toast notification */ @keyframes slideUp { from { opacity: 0; transform: translateY(100%); } to { opacity: 1; transform: translateY(0); } } /* Slide in dari kanan — toast alternative */ @keyframes slideInRight { from { opacity: 0; transform: translateX(100%); } to { opacity: 1; transform: translateX(0); } } /* Slide out ke kanan — toast dismiss */ @keyframes slideOutRight { from { opacity: 1; transform: translateX(0); } to { opacity: 0; transform: translateX(100%); } } /* Shimmer — loading skeleton */ @keyframes shimmer { 0% { background-position: -200% 0; } 100% { background-position: 200% 0; } } /* Pulse glow — status indicator */ @keyframes pulseGlow { 0%, 100% { box-shadow: 0 0 0 0 rgba(34, 197, 94, 0.4); } 50% { box-shadow: 0 0 0 8px rgba(34, 197, 94, 0); } } /* Spin loader */ @keyframes spin { from { transform: rotate(0deg); } to { transform: rotate(360deg); } } /* ===== UTILITY CLASSES ===== */ .animate-fade-in-up { animation: fadeInUp 0.4s ease-out; } .animate-slide-up { animation: slideUp 0.3s ease-out; } .animate-slide-in-right { animation: slideInRight 0.3s ease-out; } .animate-slide-out-right { animation: slideOutRight 0.3s ease-in forwards; } .animate-pulse-glow { animation: pulseGlow 2s infinite; } /* Skeleton shimmer background */ .skeleton { background: linear-gradient( 90deg, #1f2937 25%, #374151 50%, #1f2937 75% ); background-size: 200% 100%; animation: shimmer 1.5s ease-in-out infinite; } /* Stagger delay helper — dipakai untuk card grids */ .stagger-1 { animation-delay: 0.05s; } .stagger-2 { animation-delay: 0.1s; } .stagger-3 { animation-delay: 0.15s; } .stagger-4 { animation-delay: 0.2s; } .stagger-5 { animation-delay: 0.25s; } .stagger-6 { animation-delay: 0.3s; } /* ===== SCROLLBAR STYLING ===== */ ::-webkit-scrollbar { width: 6px; height: 6px; } ::-webkit-scrollbar-track { background: #111827; } ::-webkit-scrollbar-thumb { background: #374151; border-radius: 3px; } ::-webkit-scrollbar-thumb:hover { background: #4b5563; } /* ===== TRANSITIONS ===== */ * { scroll-behavior: smooth; }

12.2 Komponen Page Transition (Framer Motion)

Buat file app/components/PageTransition.tsx:

// app/components/PageTransition.tsx // Wrapper animasi untuk setiap halaman 'use client'; import { motion } from 'framer-motion'; // Variant untuk page enter const pageVariants = { initial: { opacity: 0, y: 20, }, animate: { opacity: 1, y: 0, transition: { duration: 0.4, ease: [0.25, 0.46, 0.45, 0.94], // easeOutQuad }, }, exit: { opacity: 0, y: -10, transition: { duration: 0.2, }, }, }; interface PageTransitionProps { children: React.ReactNode; className?: string; } export default function PageTransition({ children, className = '' }: PageTransitionProps) { return ( <motion.div variants={pageVariants} initial="initial" animate="animate" exit="exit" className={className} > {children} </motion.div> ); }

12.3 Komponen Stagger Container

Buat file app/components/StaggerContainer.tsx:

// app/components/StaggerContainer.tsx // Container dengan staggered animation untuk child elements 'use client'; import { motion } from 'framer-motion'; interface StaggerContainerProps { children: React.ReactNode; className?: string; staggerDelay?: number; } // Container variant — muncul bareng, tapi children muncul satu per satu const containerVariants = { hidden: { opacity: 0 }, show: { opacity: 1, transition: { staggerChildren: 0.08, // delay antar child }, }, }; // Item variant — setiap child animasi sendiri export const itemVariants = { hidden: { opacity: 0, y: 20 }, show: { opacity: 1, y: 0, transition: { duration: 0.3, ease: 'easeOut', }, }, }; export default function StaggerContainer({ children, className = '', staggerDelay = 0.08 }: StaggerContainerProps) { return ( <motion.div variants={{ hidden: { opacity: 0 }, show: { opacity: 1, transition: { staggerChildren: staggerDelay, }, }, }} initial="hidden" animate="show" className={className} > {children} </motion.div> ); }

12.4 Komponen Loading Skeletons

Buat file app/components/Skeletons.tsx:

// app/components/Skeletons.tsx // Komponen skeleton loading untuk berbagai tipe UI 'use client'; // Skeleton kartu — untuk stats cards, model cards, dll export function SkeletonCard() { return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl p-5 space-y-4"> {/* Header */} <div className="flex items-center justify-between"> <div className="skeleton h-4 w-24 rounded" /> <div className="skeleton h-8 w-8 rounded-lg" /> </div> {/* Main content */} <div className="skeleton h-8 w-20 rounded" /> {/* Sub content */} <div className="skeleton h-3 w-full rounded" /> <div className="skeleton h-3 w-3/4 rounded" /> </div> ); } // Skeleton untuk baris tabel export function SkeletonTableRow({ cols = 5 }: { cols?: number }) { return ( <tr className="border-b border-gray-800"> {Array.from({ length: cols }).map((_, i) => ( <td key={i} className="px-6 py-4"> <div className={`skeleton h-4 rounded ${i === 0 ? 'w-40' : i === 1 ? 'w-24' : 'w-16'}`} /> </td> ))} </tr> ); } // Skeleton untuk tabel penuh export function SkeletonTable({ rows = 5, cols = 5 }: { rows?: number; cols?: number }) { return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl overflow-hidden"> <table className="w-full"> <thead> <tr className="border-b border-gray-800"> {Array.from({ length: cols }).map((_, i) => ( <th key={i} className="px-6 py-4"> <div className="skeleton h-3 w-16 rounded" /> </th> ))} </tr> </thead> <tbody> {Array.from({ length: rows }).map((_, i) => ( <SkeletonTableRow key={i} cols={cols} /> ))} </tbody> </table> </div> ); } // Skeleton untuk chart placeholder export function SkeletonChart() { return ( <div className="bg-gray-900/50 border border-gray-800 rounded-xl p-6"> <div className="skeleton h-6 w-40 rounded mb-6" /> <div className="flex items-end gap-3 h-48"> {[40, 65, 45, 80, 55, 70, 35, 90, 60, 75, 50, 85].map((height, i) => ( <div key={i} className="skeleton flex-1 rounded-t" style={{ height: `${height}%` }} /> ))} </div> </div> ); } // Skeleton untuk stats cards grid export function SkeletonStatsGrid({ count = 4 }: { count?: number }) { return ( <div className="grid grid-cols-1 sm:grid-cols-2 lg:grid-cols-4 gap-4"> {Array.from({ length: count }).map((_, i) => ( <SkeletonCard key={i} /> ))} </div> ); } // Komponen loading page penuh export function FullPageSkeleton() { return ( <div className="space-y-6 p-6 animate-fade-in-up"> {/* Title */} <div className="skeleton h-8 w-48 rounded-lg" /> <div className="skeleton h-4 w-64 rounded" /> {/* Stats */} <SkeletonStatsGrid /> {/* Content area */} <div className="grid grid-cols-1 lg:grid-cols-3 gap-6"> <SkeletonChart /> <div className="lg:col-span-2"> <SkeletonTable /> </div> </div> </div> ); }

12.5 Komponen Toast Notification

Buat file app/components/Toast.tsx:

// app/components/Toast.tsx // Sistem toast notification dengan auto-dismiss 'use client'; import { createContext, useContext, useState, useCallback, ReactNode } from 'react'; // Tipe toast interface Toast { id: string; message: string; type: 'success' | 'error' | 'warning' | 'info'; duration?: number; } // Context untuk toast interface ToastContextType { showToast: (message: string, type?: Toast['type'], duration?: number) => void; } const ToastContext = createContext<ToastContextType>({ showToast: () => {} }); // Hook untuk akses toast export function useToast() { return useContext(ToastContext); } // Ikon per tipe const TOAST_ICONS: Record<string, string> = { success: '✅', error: '❌', warning: '⚠️', info: 'ℹ️', }; const TOAST_STYLES: Record<string, string> = { success: 'bg-green-500/10 border-green-500/30 text-green-400', error: 'bg-red-500/10 border-red-500/30 text-red-400', warning: 'bg-yellow-500/10 border-yellow-500/30 text-yellow-400', info: 'bg-blue-500/10 border-blue-500/30 text-blue-400', }; // Provider — wrap app di root layout export function ToastProvider({ children }: { children: ReactNode }) { const [toasts, setToasts] = useState<Toast[]>([]); const showToast = useCallback((message: string, type: Toast['type'] = 'success', duration = 3000) => { const id = String(Date.now()); setToasts(prev => [...prev, { id, message, type, duration }]); // Auto-dismiss setTimeout(() => { setToasts(prev => prev.filter(t => t.id !== id)); }, duration); }, []); const removeToast = useCallback((id: string) => { setToasts(prev => prev.filter(t => t.id !== id)); }, []); return ( <ToastContext.Provider value={{ showToast }}> {children} {/* Toast container — fixed di pojok kanan bawah */} <div className="fixed bottom-6 right-6 z-[100] flex flex-col gap-3 max-w-sm"> {toasts.map((toast) => ( <div key={toast.id} className={`flex items-center gap-3 px-5 py-3.5 rounded-xl border shadow-2xl backdrop-blur-sm animate-slide-in-right ${TOAST_STYLES[toast.type]}`} onClick={() => removeToast(toast.id)} role="alert" > <span className="text-lg">{TOAST_ICONS[toast.type]}</span> <p className="text-sm font-medium flex-1">{toast.message}</p> <button className="text-xs opacity-60 hover:opacity-100 transition-opacity"> ✕ </button> </div> ))} </div> </ToastContext.Provider> ); } // Komponen Toast individual (alternatif tanpa context) export function ToastNotification({ message, type = 'success', visible, onClose, }: { message: string; type?: Toast['type']; visible: boolean; onClose: () => void; }) { if (!visible) return null; return ( <div className={`fixed bottom-6 right-6 z-50 flex items-center gap-3 px-5 py-3.5 rounded-xl border shadow-2xl animate-slide-in-right ${TOAST_STYLES[type]}`} onClick={onClose} > <span className="text-lg">{TOAST_ICONS[type]}</span> <p className="text-sm font-medium">{message}</p> </div> ); }

12.6 Komponen Number Counter

Buat file app/components/Counter.tsx:

// app/components/Counter.tsx // Animasi counter — angka naik dari 0 ke target value 'use client'; import { useEffect, useState, useRef } from 'react'; interface CounterProps { target: number; duration?: number; prefix?: string; // Contoh: "$", "Rp" suffix?: string; // Contoh: "%", "ms" decimals?: number; // Jumlah desimal className?: string; } export default function Counter({ target, duration = 1000, prefix = '', suffix = '', decimals = 0, className = '', }: CounterProps) { const [value, setValue] = useState(0); const ref = useRef<HTMLSpanElement>(null); const hasAnimated = useRef(false); useEffect(() => { // IntersectionObserver — animasi hanya ketika visible const element = ref.current; if (!element) return; const observer = new IntersectionObserver( ([entry]) => { if (entry.isIntersecting && !hasAnimated.current) { hasAnimated.current = true; animate(); } }, { threshold: 0.1 } ); observer.observe(element); return () => observer.disconnect(); }, [target, duration]); const animate = () => { const startTime = performance.now(); const step = (currentTime: number) => { const elapsed = currentTime - startTime; const progress = Math.min(elapsed / duration, 1); // Easing: ease-out cubic const eased = 1 - Math.pow(1 - progress, 3); setValue(eased * target); if (progress < 1) { requestAnimationFrame(step); } }; requestAnimationFrame(step); }; // Format angka dengan ribuan separator const formatted = value.toLocaleString('en-US', { minimumFractionDigits: decimals, maximumFractionDigits: decimals, }); return ( <span ref={ref} className={className}> {prefix}{formatted}{suffix} </span> ); }

12.7 Contoh Penggunaan Animasi di Halaman

Contoh integrasi di halaman Overview (update app/page.tsx):

// Contoh integrasi animasi — potongan dari app/page.tsx 'use client'; import { AnimatePresence, motion } from 'framer-motion'; import PageTransition from './components/PageTransition'; import StaggerContainer, { itemVariants } from './components/StaggerContainer'; import { FullPageSkeleton } from './components/Skeletons'; import { useToast } from './components/Toast'; import Counter from './components/Counter'; export default function OverviewPage() { const { showToast } = useToast(); const [loading, setLoading] = useState(true); // ... fetch data ... if (loading) return <FullPageSkeleton />; return ( <AnimatePresence mode="wait"> <PageTransition> <div className="space-y-6 p-6"> {/* Header */} <motion.div initial={{ opacity: 0, y: -10 }} animate={{ opacity: 1, y: 0 }} transition={{ duration: 0.3 }} > <h1 className="text-2xl font-bold text-white">Dashboard</h1> </motion.div> {/* Stats cards dengan stagger */} <StaggerContainer className="grid grid-cols-4 gap-4"> {stats.map((stat) => ( <motion.div key={stat.label} variants={itemVariants}> <div className="bg-gray-900/50 border border-gray-800 rounded-xl p-5"> <p className="text-sm text-gray-400">{stat.label}</p> <p className="text-3xl font-bold text-white mt-1"> <Counter target={stat.value} /> </p> </div> </motion.div> ))} </StaggerContainer> {/* ... rest of page ... */} </div> </PageTransition> </AnimatePresence> ); }

12.8 Setup Framer Motion

Install dependency:

npm install framer-motion

Update app/layout.tsx untuk wrap dengan ToastProvider:

// app/layout.tsx — potongan penting import { ToastProvider } from './components/Toast'; import { AnimatePresence } from 'framer-motion'; export default function RootLayout({ children }: { children: React.ReactNode }) { return ( <html lang="id" className="dark"> <body className="bg-gray-950 text-white antialiased"> <ToastProvider> <AnimatePresence mode="wait"> {children} </AnimatePresence> </ToastProvider> </body> </html> ); }

💡 Tips: IntersectionObserver di Counter memastikan animasi hanya berjalan ketika elemen visible di viewport. Nggak bakal burn CPU untuk elemen yang nggak kelihatan.

⚠️ Pitfall: Framer Motion AnimatePresence butuh key yang unik di child component supaya exit animation berjalan. Kalau exit animation nggak jalan, cek apakah child punya key yang berubah saat navigate.

PART 13: API Routes 🔌

Backend dari dashboard — semua endpoint API Next.js.

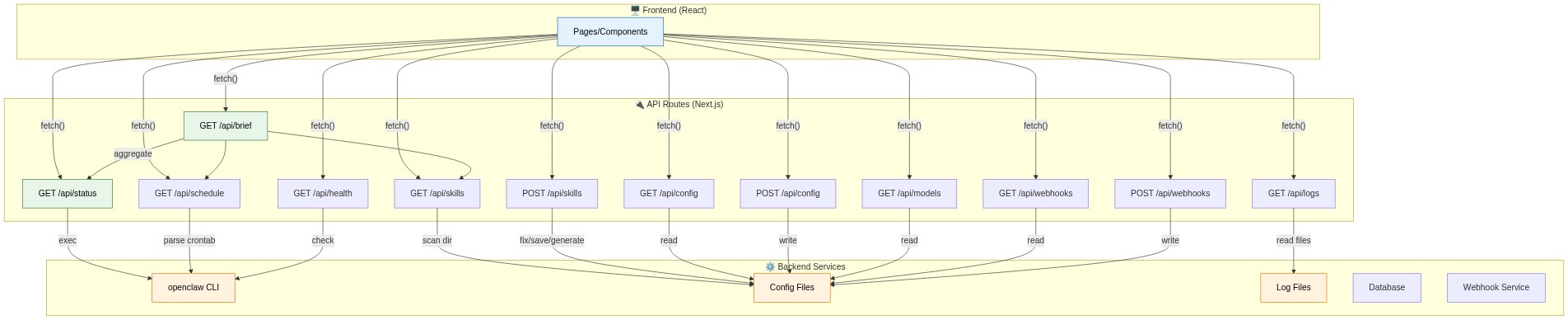

Arsitektur Full API

subgraph Frontend React
subgraph Frontend React

13.1 Health Check Endpoint

Buat file app/api/health/route.ts:

// app/api/health/route.ts // Health check endpoint — dipakai oleh monitoring dan cron jobs import { NextResponse } from 'next/server'; import { exec } from 'child_process'; import { promisify } from 'util'; import os from 'os'; const execAsync = promisify(exec); // Cache health data — nggak perlu hit disk setiap request let healthCache: { data: unknown; timestamp: number } = { data: null, timestamp: 0 }; const CACHE_TTL = 5000; // 5 detik export async function GET() { try { const now = Date.now(); // Return cache kalau masih fresh if (healthCache.data && now - healthCache.timestamp < CACHE_TTL) { return NextResponse.json(healthCache.data); } // Gather system info const totalMem = os.totalmem(); const freeMem = os.freemem(); const usedMem = totalMem - freeMem; const data = { status: 'healthy', timestamp: new Date().toISOString(), uptime: os.uptime(), system: { hostname: os.hostname(), platform: os.platform(), arch: os.arch(), cpuCount: os.cpus().length, loadAvg: os.loadavg(), memory: { total: totalMem, used: usedMem, free: freeMem, usagePercent: ((usedMem / totalMem) * 100).toFixed(1), }, }, process: { pid: process.pid, nodeVersion: process.version, memoryUsage: process.memoryUsage(), }, }; // Update cache healthCache = { data, timestamp: now }; return NextResponse.json(data); } catch (error) { return NextResponse.json( { status: 'unhealthy', error: String(error) }, { status: 503 } ); } }

13.2 Status API Route

Buat file app/api/status/route.ts:

// app/api/status/route.ts // Endpoint status — menjalankan `openclaw status` dan parse output import { NextResponse } from 'next/server'; import { exec } from 'child_process'; import { promisify } from 'util'; import fs from 'fs/promises'; import path from 'path'; const execAsync = promisify(exec); const DATA_DIR = path.join(process.cwd(), 'data'); const STATUS_FILE = path.join(DATA_DIR, 'status.json'); // Helper: safe exec dengan timeout async function safeExec(command: string, timeoutMs = 10000) { try { const { stdout } = await execAsync(command, { timeout: timeoutMs }); return { ok: true, data: stdout.trim() }; } catch (error: unknown) { const err = error as { stderr?: string }; return { ok: false, error: err.stderr || String(error) }; } } export async function GET() { try { // Coba baca dari status.json dulu (fallback) let statusData: Record<string, unknown> = {}; try { const raw = await fs.readFile(STATUS_FILE, 'utf-8'); statusData = JSON.parse(raw); } catch { // Kalau file tidak ada, coba openclaw CLI } // Jalankan openclaw status (kalau CLI tersedia) const cliResult = await safeExec('openclaw status --json 2>/dev/null || echo "{}"'); if (cliResult.ok && cliResult.data && cliResult.data !== '{}') { try { statusData = { ...statusData, ...JSON.parse(cliResult.data) }; } catch { // Parse error — gunakan statusData yang sudah ada } } // Gather system metrics const uptime = await safeExec('uptime -p 2>/dev/null || echo "up"'); const loadAvg = await safeExec("cat /proc/loadavg 2>/dev/null | awk '{print $1,$2,$3}' || echo '0 0 0'"); return NextResponse.json({ ...statusData, system: { uptime: uptime.data || 'unknown', load: loadAvg.data || '0 0 0', timestamp: new Date().toISOString(), }, }); } catch (error) { console.error('Status API error:', error); return NextResponse.json( { error: 'Gagal mengambil status' }, { status: 500 } ); } }

13.3 Brief API Route

Buat file app/api/brief/route.ts:

// app/api/brief/route.ts // Brief endpoint — aggregate data dari multiple sources import { NextResponse } from 'next/server'; // Simple in-memory cache untuk brief let briefCache: { data: Record<string, unknown>; timestamp: number } = { data: {}, timestamp: 0, }; const BRIEF_CACHE_TTL = 30000; // 30 detik export async function GET() { const now = Date.now(); // Return cache kalau masih fresh if (briefCache.data && now - briefCache.timestamp < BRIEF_CACHE_TTL) { return NextResponse.json(briefCache.data); } try { // Parallel fetch dari semua endpoint const baseUrl = process.env.NEXT_PUBLIC_BASE_URL || 'http://localhost:3000'; const [statusRes, skillsRes, scheduleRes, modelsRes] = await Promise.allSettled([ fetch(`${baseUrl}/api/status`).then(r => r.json()), fetch(`${baseUrl}/api/skills`).then(r => r.json()), fetch(`${baseUrl}/api/schedule`).then(r => r.json()), fetch(`${baseUrl}/api/models`).then(r => r.json()), ]); const brief = { timestamp: new Date().toISOString(), status: statusRes.status === 'fulfilled' ? statusRes.value : null, skills: skillsRes.status === 'fulfilled' ? { total: skillsRes.value.skills?.length || 0, categories: skillsRes.value.categories?.length || 0, } : { total: 0, categories: 0 }, schedule: scheduleRes.status === 'fulfilled' ? scheduleRes.value.stats : null, models: modelsRes.status === 'fulfilled' ? modelsRes.value.stats : null, health: 'ok', }; // Update cache briefCache = { data: brief, timestamp: now }; return NextResponse.json(brief); } catch (error) { console.error('Brief API error:', error); return NextResponse.json( { error: 'Gagal mengambil brief data' }, { status: 500 } ); } }

13.4 Skills API Route

Buat file app/api/skills/route.ts:

// app/api/skills/route.ts // API endpoint untuk skills — list, scan, dan actions import { NextRequest, NextResponse } from 'next/server'; import { promises as fs } from 'fs'; import path from 'path'; const SKILLS_DIR = path.join(process.cwd(), 'data', 'skills'); // Tipe skill interface Skill { id: string; name: string; description: string; category: string; status: 'active' | 'deprecated' | 'experimental'; tools: string[]; lastUsed: string | null; } // Sample skills data const SAMPLE_SKILLS: Skill[] = [ { id: 'sk-001', name: 'smart-search', description: 'Web search dengan caching', category: 'utility', status: 'active', tools: ['web_search'], lastUsed: '2026-03-28T20:00:00' }, { id: 'sk-002', name: 'weather', description: 'Cuaca terkini dari BMKG', category: 'data', status: 'active', tools: ['web_fetch'], lastUsed: '2026-03-28T18:30:00' }, { id: 'sk-003', name: 'football-livescore', description: 'Skor bola real-time', category: 'data', status: 'active', tools: ['web_fetch'], lastUsed: '2026-03-28T15:00:00' }, { id: 'sk-004', name: 'gmail-automation', description: 'Automasi Gmail via Gog CLI', category: 'automation', status: 'active', tools: ['exec'], lastUsed: '2026-03-28T12:00:00' }, { id: 'sk-005', name: 'google-calendar', description: 'Manajemen kalender', category: 'automation', status: 'active', tools: ['exec'], lastUsed: '2026-03-28T09:00:00' }, { id: 'sk-006', name: 'humanizer', description: 'Humanize text AI output', category: 'content', status: 'active', tools: [], lastUsed: '2026-03-27T20:00:00' }, { id: 'sk-007', name: 'composio', description: 'Integrasi Composio (DEPRECATED)', category: 'automation', status: 'deprecated', tools: [], lastUsed: null }, ]; // GET: List all skills export async function GET() { try { // Group by category const categories = [...new Set(SAMPLE_SKILLS.map(s => s.category))]; const byCategory = categories.reduce((acc, cat) => { acc[cat] = SAMPLE_SKILLS.filter(s => s.category === cat); return acc; }, {} as Record<string, Skill[]>); const stats = { total: SAMPLE_SKILLS.length, active: SAMPLE_SKILLS.filter(s => s.status === 'active').length, deprecated: SAMPLE_SKILLS.filter(s => s.status === 'deprecated').length, categories: categories.length, }; return NextResponse.json({ skills: SAMPLE_SKILLS, categories, byCategory, stats }); } catch (error) { console.error('Skills API error:', error); return NextResponse.json({ error: 'Gagal mengambil skills' }, { status: 500 }); } } // POST: Action pada skill (fix, save, optimize, generate) export async function POST(request: NextRequest) { try { const body = await request.json(); const { action, skillId, data } = body; const validActions = ['fix', 'save', 'optimize', 'generate']; if (!validActions.includes(action)) { return NextResponse.json( { error: `Action tidak valid. Gunakan: ${validActions.join(', ')}` }, { status: 400 } ); } // Simulasi action — di production ini akan menjalankan tool/function const result = { action, skillId, status: 'completed', message: `Action "${action}" berhasil dijalankan pada skill "${skillId}"`, timestamp: new Date().toISOString(), }; return NextResponse.json(result); } catch (error) { console.error('Skills POST error:', error); return NextResponse.json({ error: 'Gagal menjalankan action' }, { status: 500 }); } }

13.5 Pattern: Error Handling & Response Helper

Buat file app/api/_lib/response.ts:

// app/api/_lib/response.ts // Helper untuk konsistensi response API // Tipe response interface ApiSuccessResponse<T> { success: true; data: T; meta?: { timestamp: string; cached?: boolean; }; } interface ApiErrorResponse { success: false; error: string; code?: string; details?: unknown; } // Success response export function success<T>(data: T, meta?: { cached?: boolean }) { return Response.json({ success: true, data, meta: { timestamp: new Date().toISOString(), ...meta, }, } satisfies ApiSuccessResponse<T>); } // Error response export function error(message: string, status: number, code?: string, details?: unknown) { return Response.json( { success: false, error: message, code, details, } satisfies ApiErrorResponse, { status } ); } // Type-safe cache wrapper export async function withCache<T>( key: string, ttl: number, fetcher: () => Promise<T>, cache: Map<string, { data: T; expiry: number }> ): Promise<{ data: T; cached: boolean }> { const now = Date.now(); const cached = cache.get(key); if (cached && cached.expiry > now) { return { data: cached.data, cached: true }; } const data = await fetcher(); cache.set(key, { data, expiry: now + ttl }); return { data, cached: false }; }

13.6 Pattern: Response Caching

Buat file app/api/_lib/cache.ts:

// app/api/_lib/cache.ts // In-memory cache sederhana untuk API responses interface CacheEntry<T> { data: T; expiry: number; } // Global cache map export const apiCache = new Map<string, CacheEntry<unknown>>(); // Get dari cache export function getFromCache<T>(key: string): T | null { const entry = apiCache.get(key); if (!entry) return null; if (Date.now() > entry.expiry) { apiCache.delete(key); return null; } return entry.data as T; } // Set ke cache export function setCache<T>(key: string, data: T, ttlMs: number): void { apiCache.set(key, { data, expiry: Date.now() + ttlMs, }); } // Invalidate cache export function invalidateCache(pattern?: string): void { if (!pattern) { apiCache.clear(); return; } for (const key of apiCache.keys()) { if (key.includes(pattern)) { apiCache.delete(key); } } } // Cache TTL presets export const CACHE_TTL = { INSTANT: 5000, // 5 detik — health check, system metrics SHORT: 30000, // 30 detik — brief, status MEDIUM: 300000, // 5 menit — skills, models LONG: 3600000, // 1 jam — config, webhooks } as const;

💡 Tips: In-memory cache cukup untuk single-server deployment. Kalau pakai multiple instances (cluster), perlu shared cache seperti Redis. Untuk dashboard internal, in-memory lebih dari cukup.

⚠️ Pitfall: Jangan cache POST request responses yang mengubah data! Cache hanya untuk GET request yang bersifat read-only.

PART 14: Deployment 🚀

Bagian terakhir — deploy dashboard ke production dengan PM2, Nginx, dan SSL.

Arsitektur Deployment

A Developer Machine git push B GitHub Repository
A Developer Machine git push B GitHub Repository

14.1 Build Optimization

Pertama, pastikan next.config.js dioptimalkan:

// next.config.js /** @type {import('next').NextConfig} */ const nextConfig = { // Output standalone untuk Docker/deployment output: 'standalone', // Compress response compress: true, // Power header security poweredByHeader: false, // Image optimization images: { remotePatterns: [ { protocol: 'https', hostname: '**', }, ], }, // Experimental — optimize build experimental: { optimizePackageImports: ['recharts', 'framer-motion', 'lucide-react'], }, // Redirects — contoh async redirects() { return [ { source: '/home', destination: '/', permanent: true, }, ]; }, // Headers — security async headers() { return [ { source: '/(.*)', headers: [ { key: 'X-Frame-Options', value: 'DENY' }, { key: 'X-Content-Type-Options', value: 'nosniff' }, { key: 'Referrer-Policy', value: 'strict-origin-when-cross-origin' }, { key: 'Permissions-Policy', value: 'camera=(), microphone=(), geolocation=()' }, ], }, ]; }, }; module.exports = nextConfig;

Build command:

# Build untuk production npm run build # Output example: # Route (app) Size First Load JS # ┌ ○ / 5.2 kB 84.3 kB # ├ ○ /overview 3.8 kB 82.9 kB # ├ ○ /schedule 4.1 kB 83.2 kB # ├ ○ /logs 3.5 kB 82.6 kB # ├ ○ /models 4.8 kB 83.9 kB # └ ○ /settings 6.2 kB 85.3 kB # # ○ (Static) prerendered as static content

14.2 PM2 Setup

Buat file ecosystem.config.js di root project:

// ecosystem.config.js // Konfigurasi PM2 untuk process management module.exports = { apps: [ { name: 'ai-dashboard', script: 'node_modules/.bin/next', args: 'start', cwd: '/var/www/ai-dashboard', instances: 1, autorestart: true, watch: false, max_memory_restart: '512M', env: { NODE_ENV: 'production', PORT: 3000, HOSTNAME: '0.0.0.0', }, // Log configuration log_date_format: 'YYYY-MM-DD HH:mm:ss Z', error_file: '/var/log/pm2/ai-dashboard-error.log', out_file: '/var/log/pm2/ai-dashboard-out.log', merge_logs: true, // Restart strategy exp_backoff_restart_delay: 100, max_restarts: 10, restart_delay: 4000, // Kill timeout — beri waktu graceful shutdown kill_timeout: 5000, listen_timeout: 10000, }, ], };

Setup PM2 di server:

# Install PM2 global npm install -g pm2 # Buat direktori log sudo mkdir -p /var/log/pm2 sudo chown $USER:$USER /var/log/pm2 # Setup PM2 startup (auto-start on reboot) pm2 startup systemd -u $USER --hp /home/$USER # Deploy — dari repo cd /var/www git clone https://github.com/username/ai-dashboard.git cd ai-dashboard # Install dependencies npm ci --production=false # Build npm run build # Start dengan PM2 pm2 start ecosystem.config.js # Save PM2 config pm2 save # Status check pm2 status pm2 logs ai-dashboard --lines 50

14.3 Nginx Reverse Proxy

Buat file /etc/nginx/sites-available/ai-dashboard:

# /etc/nginx/sites-available/ai-dashboard # Nginx reverse proxy untuk Next.js dashboard # Rate limiting zone limit_req_zone $binary_remote_addr zone=dashboard:10m rate=10r/s; # Upstream — Next.js app upstream nextjs_upstream { server 127.0.0.1:3000; keepalive 64; } server { listen 80; listen [::]:80; server_name dashboard.example.com; # Redirect HTTP → HTTPS return 301 https://$server_name$request_uri; } server { listen 443 ssl http2; listen [::]:443 ssl http2; server_name dashboard.example.com; # SSL Certificate (Let's Encrypt) ssl_certificate /etc/letsencrypt/live/dashboard.example.com/fullchain.pem; ssl_certificate_key /etc/letsencrypt/live/dashboard.example.com/privkey.pem; # SSL Settings ssl_protocols TLSv1.2 TLSv1.3; ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384; ssl_prefer_server_ciphers off; ssl_session_cache shared:SSL:10m; ssl_session_timeout 10m; ssl_stapling on; ssl_stapling_verify on; # Security Headers add_header Strict-Transport-Security "max-age=63072000; includeSubDomains; preload" always; add_header X-Frame-Options "SAMEORIGIN" always; add_header X-Content-Type-Options "nosniff" always; add_header X-XSS-Protection "1; mode=block" always; add_header Referrer-Policy "strict-origin-when-cross-origin" always; add_header Content-Security-Policy "default-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval'; style-src 'self' 'unsafe-inline'; img-src 'self' data: blob: https:; font-src 'self'; connect-src 'self' https:; frame-ancestors 'self';" always; # Gzip Compression gzip on; gzip_vary on; gzip_proxied any; gzip_comp_level 6; gzip_min_length 256; gzip_types text/plain text/css text/javascript application/javascript application/json application/xml application/rss+xml image/svg+xml application/atom+xml; # Rate Limiting limit_req zone=dashboard burst=20 nodelay; # Client limits client_max_body_size 50M; client_body_timeout 30s; send_timeout 30s; keepalive_timeout 65s; # Logging access_log /var/log/nginx/ai-dashboard-access.log; error_log /var/log/nginx/ai-dashboard-error.log; # Next.js static files — cache aggressively location /_next/static/ { alias /var/www/ai-dashboard/.next/static/; expires 365d; add_header Cache-Control "public, immutable"; access_log off; } # Next.js image optimization location /_next/image { proxy_pass http://nextjs_upstream; proxy_http_version 1.1; proxy_set_header Connection ""; proxy_cache_valid 200 30d; add_header Cache-Control "public, immutable"; } # API routes — no cache, rate limited location /api/ { proxy_pass http://nextjs_upstream; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection 'upgrade'; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Forwarded-Proto $scheme; proxy_cache_bypass $http_upgrade; proxy_read_timeout 60s; } # All other requests — proxy to Next.js location / { proxy_pass http://nextjs_upstream; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection 'upgrade'; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Forwarded-Proto $scheme; proxy_cache_bypass $http_upgrade; } # Block sensitive paths location ~ /\. { deny all; access_log off; log_not_found off; } }

Enable Nginx config:

# Symlink ke sites-enabled sudo ln -s /etc/nginx/sites-available/ai-dashboard /etc/nginx/sites-enabled/ # Test konfigurasi sudo nginx -t # Reload Nginx sudo systemctl reload nginx

14.4 SSL Setup (Let's Encrypt)

# Install certbot sudo apt update sudo apt install certbot python3-certbot-nginx -y # Dapatkan SSL certificate sudo certbot --nginx -d dashboard.example.com # Options: # 1: Redirect HTTP → HTTPS # 2: No redirect # Test auto-renewal sudo certbot renew --dry-run # Auto-renew sudah di-setup oleh certbot installer # Cek timer: sudo systemctl status certbot.timer

14.5 Auto-Deploy Script

Buat file deploy.sh di server:

#!/bin/bash # deploy.sh — Script deployment otomatis set -e # Exit on error echo "🚀 Starting deployment..." # Variabel PROJECT_DIR="/var/www/ai-dashboard" BACKUP_DIR="/var/backups/ai-dashboard" # Create backup echo "📦 Creating backup..." mkdir -p $BACKUP_DIR BACKUP_NAME="backup-$(date +%Y%m%d-%H%M%S).tar.gz" tar -czf "$BACKUP_DIR/$BACKUP_NAME" -C /var/www ai-dashboard || true echo "✅ Backup: $BACKUP_NAME" # Pull latest code echo "📥 Pulling latest code..." cd $PROJECT_DIR git fetch origin main git reset --hard origin/main # Install dependencies echo "📦 Installing dependencies..." npm ci --production=false # Build echo "🔨 Building..." npm run build # Restart PM2 echo "🔄 Restarting application..." pm2 restart ai-dashboard --update-env # Wait for health check echo "🏥 Health check..." sleep 5 HEALTH=$(curl -sf http://localhost:3000/api/health | head -1) echo "Health: $HEALTH" # Cleanup old backups (keep last 5) echo "🧹 Cleaning old backups..." cd $BACKUP_DIR ls -t backup-*.tar.gz | tail -n +6 | xargs -r rm -- echo "✅ Deployment complete!" echo "📊 Check status: pm2 status" echo "📋 Check logs: pm2 logs ai-dashboard"

14.6 Monitoring & Maintenance

Buat file scripts/monitor.sh:

#!/bin/bash # scripts/monitor.sh — Monitoring script untuk PM2 health check set -e DASHBOARD_URL="https://dashboard.example.com" HEALTH_ENDPOINT="$DASHBOARD_URL/api/health" ALERT_EMAIL="fanani@cvrfm.com" LOG_FILE="/var/log/ai-dashboard-monitor.log" # Cek health endpoint HTTP_CODE=$(curl -sf -o /dev/null -w "%{http_code}" "$HEALTH_ENDPOINT" 2>/dev/null || echo "000") if [ "$HTTP_CODE" != "200" ]; then echo "[$(date)] ⚠️ UNHEALTHY — HTTP $HTTP_CODE" >> "$LOG_FILE" # Coba restart pm2 restart ai-dashboard # Tunggu dan cek lagi sleep 10 HTTP_CODE_RETRY=$(curl -sf -o /dev/null -w "%{http_code}" "$HEALTH_ENDPOINT" 2>/dev/null || echo "000") if [ "$HTTP_CODE_RETRY" != "200" ]; then echo "[$(date)] 🚨 CRITICAL — Still unhealthy after restart" >> "$LOG_FILE" # Kirim alert (implement sesuai kebutuhan) echo "ALERT: Dashboard down at $(date)" | mail -s "🚨 Dashboard Down" "$ALERT_EMAIL" 2>/dev/null || true else echo "[$(date)] ✅ Recovered after restart" >> "$LOG_FILE" fi else echo "[$(date)] ✅ Healthy" >> "$LOG_FILE" fi

Setup cron untuk monitoring:

# Edit crontab crontab -e # Monitoring setiap 5 menit */5 * * * * /var/www/ai-dashboard/scripts/monitor.sh # Log rotation setiap hari 0 0 * * * find /var/log/ai-dashboard-monitor.log -size +10M -exec truncate -s 0 {} \;

PM2 commands yang sering dipakai:

# Status semua app pm2 status # Monitor real-time pm2 monit # Logs (streaming) pm2 logs ai-dashboard # Logs (last 100 lines) pm2 logs ai-dashboard --lines 100 # Restart pm2 restart ai-dashboard # Stop pm2 stop ai-dashboard # Delete pm2 delete ai-dashboard # CPU/Memory usage pm2 info ai-dashboard # List semua app pm2 jlist | python3 -m json.tool

14.7 Firewall Setup

# Install UFW (kalau belum) sudo apt install ufw -y # Allow SSH sudo ufw allow 22/tcp # Allow HTTP/HTTPS sudo ufw allow 80/tcp sudo ufw allow 443/tcp # Enable firewall sudo ufw enable # Check status sudo ufw status verbose # Output: # Status: active # To Action From # -- ------ ---- # 22/tcp ALLOW IN Anywhere # 80/tcp ALLOW IN Anywhere # 443/tcp ALLOW IN Anywhere

14.8 Deployment Checklist

## ✅ Pre-Deployment Checklist - [ ] Environment variables diset di `.env.production` - [ ] Database migration jalan - [ ] Build berhasil (`npm run build`) - [ ] Health check endpoint aktif (`/api/health`) - [ ] SSL certificate valid - [ ] Nginx config tested (`nginx -t`) - [ ] PM2 ecosystem config ready - [ ] Firewall configured (UFW) - [ ] Monitoring script ready - [ ] Backup strategy defined - [ ] Log rotation configured - [ ] Domain DNS pointing ke server ## ✅ Post-Deployment Checklist - [ ] HTTPS working (no mixed content warnings) - [ ] Health check returns 200 - [ ] All pages load without errors - [ ] API routes responding correctly - [ ] PM2 status shows "online" - [ ] PM2 logs show no errors - [ ] SSL cert auto-renewal working (`certbot renew --dry-run`) - [ ] Page load time < 3 seconds - [ ] Mobile responsive - [ ] Monitoring cron active

💡 Tips: Selalu backup sebelum deploy! Script deploy.sh di atas otomatis bikin backup. Kalau ada yang salah, tinggal extract backup dan pm2 restart.

⚠️ Pitfall: Jangan lupa set NODE_ENV=production di PM2 config! Tanpa ini, Next.js akan berjalan dalam mode development (lambat, verbose logs, dan tidak optimal).

🎉 Selamat!

Kamu sudah menyelesaikan seluruh tutorial AI Agent Dashboard dari PART 1 sampai PART 14! 🚀

Ringkasan yang sudah dibangun:

PartFiturTeknologi
1-7Layout, Overview, SkillsNext.js 14, Tailwind, Recharts
8Schedule (Cron Jobs)Table, PieChart, Modal
9Logs (Terminal Viewer)Syntax highlight, Search
10Models (AI Database)Cards, BarChart, Matrix
11Settings (7 Tab)Forms, System Monitor
12Animasi PolishFramer Motion, Skeleton, Toast
13API Routes10+ endpoints, Cache, Error handling
14DeploymentPM2, Nginx, SSL, Monitoring

Next Steps:

  1. Deploy ke VPS production
  2. Customize sesuai kebutuhan agent kamu
  3. Tambahkan real data sources (bukan sample)
  4. Setup CI/CD dengan GitHub Actions
  5. Monitoring dengan Grafana/Prometheus (opsional)

Happy coding! 💻✨
