⚡ Redis Caching Pattern for Speed

Speed up your OpenClaw automations 20x with Redis caching — from 1 second to 50ms! 🚀

📊 Cache Flow Architecture

}}%% flowchart TD A🚀 Incoming Request --> B{🔍 Check Redis Cache} style A fill:#e1f5fe,stroke:#01579b,stroke-width:2px style B fill:#fff3e0,stroke:#e65100,stroke-width:2px

B -->|Cache HIT ✅| C[⚡ Return Cached Data<br/>~5ms]
B -->|Cache MISS ❌| D[🌐 Fetch from External API<br/>~800ms]
style C fill:#c8e6c9,stroke:#2e7d32,stroke-width:2px
style D fill:#ffcdd2,stroke:#c62828,stroke-width:2px

D --> E[💾 Store in Redis<br/>with TTL]
style E fill:#e1bee7,stroke:#6a1b9a,stroke-width:2px

E --> F[📤 Return Fresh Data]
C --> G[✅ Client Response]
F --> G
style F fill:#b3e5fc,stroke:#0277bd,stroke-width:2px
style G fill:#a5d6a7,stroke:#388e3c,stroke-width:2px'}

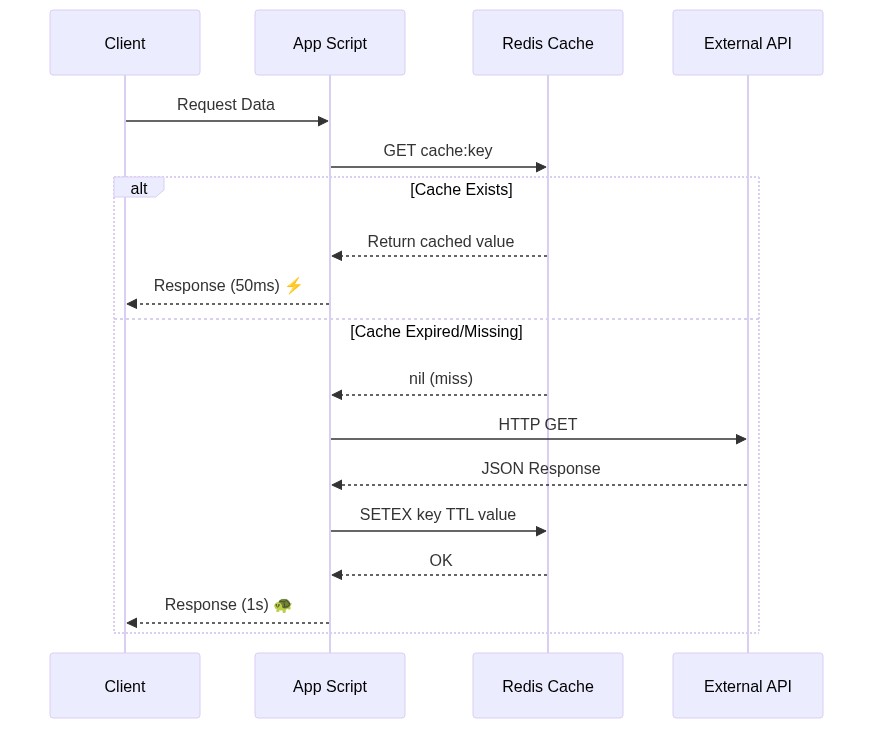

🔄 Cache Lifecycle Sequence

}}%% sequenceDiagram participant C as Client participant A as App Script participant R as Redis Cache participant API as External API

C->>A: Request Data
A->>R: GET cache:key

alt Cache Exists
    R-->>A: Return cached value
    A-->>C: Response (50ms) ⚡
else Cache Expired/Missing
    R-->>A: nil (miss)
    A->>API: HTTP GET
    API-->>A: JSON Response
    A->>R: SETEX key TTL value
    R-->>A: OK
    A-->>C: Response (1s) 🐢
end'}

🎯 Before vs After

┌─────────────────────────────────────────────────────────────┐
│                  SPEED COMPARISON                           │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│  WITHOUT CACHE ❌                    WITH CACHE ✅          │
│                                                             │
│  ┌──────────────┐                   ┌──────────────┐        │
│  │ Request      │                   │ Request      │        │
│  └──────┬───────┘                   └──────┬───────┘        │
│         │                                  │                │
│         ▼                                  ▼                │
│  ┌──────────────┐                   ┌──────────────┐        │
│  │ API Call     │  800ms            │ Check Redis  │  5ms   │
│  │ (External)   │                   └──────┬───────┘        │
│         │                                  │                │
│         ▼                                  ▼                │
│  ┌──────────────┐                   ┌──────────────┐        │
│  │ Parse Data   │  200ms            │ Cache Hit!   │  50ms  │
│  └──────┬───────┘                   └──────┬───────┘        │
│         │                                  │                │
│         ▼                                  ▼                │
│  ┌──────────────┐                   ┌──────────────┐        │
│  │ Total: 1s    │                   │ Total: 50ms  │        │
│  │ 😫 Slow      │                   │ 🚀 20x Faster│        │
│  └──────────────┘                   └──────────────┘        │
│                                                             │
└─────────────────────────────────────────────────────────────┘

Real Numbers

Operation	Without Cache	With Cache	Speedup
Gold Price API	1,200ms	45ms	27x 🚀
Weather API	800ms	12ms	67x 🚀
Health Check	500ms	8ms	62x 🚀
User Session	300ms	5ms	60x 🚀

🎯 What You'll Build

┌─────────────────────────────────────────────────────────────┐
│              REDIS CACHING ARCHITECTURE                     │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│   YOUR SCRIPT                    REDIS SERVER               │
│   ┌──────────────┐              ┌──────────────┐           │
│   │              │              │              │           │
│   │ 1. Check     │─────────────▶│ Key exists?  │           │
│   │    Cache     │              │              │           │
│   │              │◀─────────────│ YES → Return │           │
│   └──────┬───────┘              │      value   │           │
│          │                      │              │           │
│          │ NO                   └──────────────┘           │
│          ▼                             ▲                    │
│   ┌──────────────┐                     │                    │
│   │ 2. Fetch from│                     │                    │
│   │    External  │                     │                    │
│   │    API       │                     │                    │
│   └──────┬───────┘                     │                    │
│          │                             │                    │
│          ▼                             │                    │
│   ┌──────────────┐                     │                    │
│   │ 3. Store in  │─────────────────────┘                    │
│   │    Cache     │         (with TTL)                        │
│   │              │                                          │
│   └──────────────┘                                          │
│                                                             │
│   TTL = Time To Live (auto-expire)                         │
│                                                             │
└─────────────────────────────────────────────────────────────┘

🛠️ Installation

Install Redis

# Ubuntu/Debian
sudo apt-get update
sudo apt-get install redis-server

# macOS
brew install redis

# Start Redis
sudo systemctl start redis    # Linux
brew services start redis     # macOS

# Verify
redis-cli ping
# Should return: PONG

Install Redis Client (Bash)

# redis-cli included with server install
# For scripts, use redis-cli directly

# Test connection
redis-cli set test "hello"
redis-cli get test
# Returns: hello

redis-cli del test

📋 Step 1: Create Helper Functions

Save this as ~/scripts/redis-utils.sh:

#!/bin/bash

# =============================================================================
# ⚡ Redis Helper Functions for OpenClaw
# =============================================================================

# Default Redis connection
REDIS_HOST="${REDIS_HOST:-localhost}"
REDIS_PORT="${REDIS_PORT:-6379}"

# =============================================================================
# 🔧 CORE FUNCTIONS
# =============================================================================

# Set a key with optional TTL (Time To Live in seconds)
redis_set() {
    local key="$1"
    local value="$2"
    local ttl="${3:-}"

    if [ -n "$ttl" ]; then
        redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" setex "$key" "$ttl" "$value" >/dev/null
    else
        redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" set "$key" "$value" >/dev/null
    fi
}

# Get a key value
redis_get() {
    local key="$1"
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" get "$key"
}

# Delete a key
redis_delete() {
    local key="$1"
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" del "$key" >/dev/null
}

# Check if key exists (returns 1 if exists, 0 if not)
redis_exists() {
    local key="$1"
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" exists "$key"
}

# Get TTL of a key (returns seconds remaining, -1 if no TTL, -2 if not exists)
redis_ttl() {
    local key="$1"
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" ttl "$key"
}

# List keys matching pattern (default: all)
redis_keys() {
    local pattern="${1:-*}"
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" keys "$pattern"
}

# =============================================================================
# 🎯 CONVENIENCE FUNCTIONS
# =============================================================================

# Cache JSON data with TTL
redis_cache_json() {
    local key="$1"
    local json_data="$2"
    local ttl="${3:-300}"  # Default 5 minutes

    # Compress JSON to single line
    local compressed
    compressed=$(echo "$json_data" | jq -c . 2>/dev/null || echo "$json_data")

    redis_set "$key" "$compressed" "$ttl"
}

# Get and parse cached JSON
redis_get_json() {
    local key="$1"
    local value
    value=$(redis_get "$key")

    if [ -n "$value" ] && [ "$value" != "nil" ]; then
        echo "$value" | jq . 2>/dev/null || echo "$value"
    else
        echo "null"
    fi
}

# Cache with automatic expiration for different data types
redis_cache_weather() {
    local location="$1"
    local data="$2"
    # Cache weather for 30 minutes
    redis_cache_json "weather:$location" "$data" 1800
}

redis_cache_price() {
    local item="$1"
    local data="$2"
    # Cache prices for 5 minutes
    redis_cache_json "price:$item" "$data" 300
}

redis_cache_health() {
    local service="$1"
    local data="$2"
    # Cache health for 1 minute
    redis_cache_json "health:$service" "$data" 60
}

redis_cache_session() {
    local session_id="$1"
    local data="$2"
    # Cache sessions for 1 hour
    redis_cache_json "session:$session_id" "$data" 3600
}

# =============================================================================
# 📊 MONITORING FUNCTIONS
# =============================================================================

# Show cache statistics
redis_stats() {
    echo "📊 Redis Statistics"
    echo "=================="

    # Memory usage
    echo -n "Memory Used: "
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" info memory | grep "used_memory_human" | cut -d: -f2

    # Number of keys
    echo -n "Total Keys: "
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" dbsize

    # Connected clients
    echo -n "Connected Clients: "
    redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" info clients | grep "connected_clients" | cut -d: -f2
}

# Clear all cache (use with caution!)
redis_flush() {
    echo "⚠️  This will delete ALL cached data!"
    read -p "Type 'yes' to confirm: " confirm

    if [ "$confirm" = "yes" ]; then
        redis-cli -h "$REDIS_HOST" -p "$REDIS_PORT" flushdb
        echo "✅ Cache cleared"
    else
        echo "❌ Cancelled"
    fi
}

# Show keys by prefix
redis_list_by_prefix() {
    local prefix="$1"
    echo "🔑 Keys with prefix '$prefix':"
    redis_keys "${prefix}*" | while read -r key; do
        local ttl
        ttl=$(redis_ttl "$key")
        printf "  %-40s (TTL: %s)\n" "$key" "$ttl"
    done
}

Make it executable:

chmod +x ~/scripts/redis-utils.sh

📋 Step 2: Use Cases with Code Examples

Use Case 1: Gold/Price Caching

#!/bin/bash

source ~/scripts/redis-utils.sh

fetch_gold_price() {
    local cache_key="price:gold:xauusd"

    # 1. Check cache first
    local cached
    cached=$(redis_get_json "$cache_key")

    if [ "$cached" != "null" ]; then
        echo "💰 Cache HIT! Gold price (cached):"
        echo "$cached" | jq -r '.price'
        return 0
    fi

    echo "🔄 Cache MISS — Fetching from API..."

    # 2. Fetch from external API
    local api_response
    api_response=$(curl -s "https://api.goldapi.io/v1/XAU/USD" \
        -H "x-access-token: YOUR_API_KEY")

    # 3. Parse and format
    local price
    price=$(echo "$api_response" | jq -r '.price')

    local formatted_data
    formatted_data=$(jq -n \
        --arg price "$price" \
        --arg time "$(date -Iseconds)" \
        '{price: $price, timestamp: $time, source: "goldapi"}')

    # 4. Store in cache (5 minutes)
    redis_cache_price "gold:xauusd" "$formatted_data"

    echo "💰 Gold price (fresh): $price"
    echo "✅ Cached for 5 minutes"
}

# Run
fetch_gold_price

Use Case 2: Weather Caching

#!/bin/bash

source ~/scripts/redis-utils.sh

fetch_weather() {
    local city="${1:-Jakarta}"
    local cache_key="weather:$city"

    # Check cache
    local cached
    cached=$(redis_get_json "$cache_key")

    if [ "$cached" != "null" ]; then
        echo "🌤️  Weather for $city (cached):"
        echo "$cached" | jq -r '.condition, .temperature'
        return 0
    fi

    echo "🔄 Fetching weather for $city..."

    # API call (example)
    local weather_data
    weather_data=$(curl -s "https://api.weather.com/v1/current?city=$city" \
        -H "Authorization: Bearer YOUR_KEY")

    # Cache for 30 minutes
    redis_cache_weather "$city" "$weather_data"

    echo "🌤️  Weather for $city:"
    echo "$weather_data" | jq -r '.condition, .temperature'
}

fetch_weather "Singapore"

Use Case 3: Health Status Caching

#!/bin/bash

source ~/scripts/redis-utils.sh

check_service_health() {
    local service="$1"
    local url="$2"
    local cache_key="health:$service"

    # Check cache first (1 minute TTL)
    local cached
    cached=$(redis_get_json "$cache_key")

    if [ "$cached" != "null" ]; then
        local status
        status=$(echo "$cached" | jq -r '.status')
        echo "[$service] $status (cached)"
        return 0
    fi

    # Check service
    local start_time end_time duration
    start_time=$(date +%s%N)

    if curl -s --max-time 5 "$url" >/dev/null 2>&1; then
        end_time=$(date +%s%N)
        duration=$(( (end_time - start_time) / 1000000 ))

        local result
        result=$(jq -n \
            --arg status "UP" \
            --argjson response_time "$duration" \
            --arg checked_at "$(date -Iseconds)" \
            '{status: $status, response_time: $response_time, checked_at: $checked_at}')

        redis_cache_health "$service" "$result"
        echo "[$service] UP (${duration}ms)"
    else
        local result
        result=$(jq -n \
            --arg status "DOWN" \
            --arg checked_at "$(date -Iseconds)" \
            '{status: $status, checked_at: $checked_at}')

        redis_cache_health "$service" "$result"
        echo "[$service] DOWN"
    fi
}

# Check multiple services
echo "🏥 Health Check (with caching):"
check_service_health "api" "https://api.example.com/health"
check_service_health "database" "https://db.example.com/ping"
check_service_health "website" "https://example.com"

Use Case 4: Session Caching

#!/bin/bash

source ~/scripts/redis-utils.sh

# Store user session
save_session() {
    local session_id="$1"
    local user_data="$2"

    redis_cache_session "$session_id" "$user_data"
    echo "✅ Session saved (1 hour)"
}

# Retrieve user session
get_session() {
    local session_id="$1"
    local session_data

    session_data=$(redis_get_json "session:$session_id")

    if [ "$session_data" != "null" ]; then
        echo "$session_data"
    else
        echo "{}"
    fi
}

# Example usage
user_session='{"user_id": "123", "name": "Alex", "preferences": {"theme": "dark"}}'
save_session "sess_abc123" "$user_session"

retrieved=$(get_session "sess_abc123")
echo "User: $(echo "$retrieved" | jq -r '.name')"

📋 Step 3: Complete Working Example

Save this as ~/scripts/cached-api-call.sh:

#!/bin/bash

source ~/scripts/redis-utils.sh

# =============================================================================
# ⚡ Generic Cached API Caller
# =============================================================================

cached_api_call() {
    local cache_key="$1"
    local api_url="$2"
    local cache_seconds="${3:-300}"  # Default 5 minutes
    local api_headers="${4:-}"

    echo "🔍 Checking cache for: $cache_key"

    # Try cache first
    local cached_data
    cached_data=$(redis_get_json "$cache_key")

    if [ "$cached_data" != "null" ]; then
        local cache_age
        cache_age=$(redis_ttl "$cache_key")
        echo "✅ Cache HIT! (expires in ${cache_age}s)"
        echo "$cached_data"
        return 0
    fi

    echo "🔄 Cache miss — calling API..."

    # Make API call
    local response
    if [ -n "$api_headers" ]; then
        response=$(curl -s -H "$api_headers" "$api_url")
    else
        response=$(curl -s "$api_url")
    fi

    # Validate response (simple JSON check)
    if ! echo "$response" | jq -e . >/dev/null 2>&1; then
        echo "❌ Invalid API response" >&2
        return 1
    fi

    # Cache the response
    redis_cache_json "$cache_key" "$response" "$cache_seconds"
    echo "✅ Cached for ${cache_seconds} seconds"

    echo "$response"
}

# Example usage
echo "Fetching data with caching..."
result=$(cached_api_call "users:list" "https://jsonplaceholder.typicode.com/users" 600)
echo "$result" | jq '.[0].name'

🔧 TTL (Time To Live) Guidelines

┌─────────────────────────────────────────────────────────────┐
│              RECOMMENDED CACHE DURATIONS                    │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│  Data Type          TTL          Reason                     │
│  ─────────────────────────────────────────────────────────  │
│  💰 Stock/Prices    5 min        Changes frequently          │
│  🌤️  Weather        30 min       Updates ~hourly             │
│  🏥 Health Status   1 min        Need fresh status          │
│  👤 User Sessions   1 hour       Security + usability       │
│  📊 API Rate Limits 1 hour       Static configuration       │
│  🗺️  Locations      24 hours      Rarely change             │
│                                                             │
└─────────────────────────────────────────────────────────────┘

📊 Performance Testing

Compare cached vs non-cached:

#!/bin/bash

source ~/scripts/redis-utils.sh

API_URL="https://api.example.com/data"
CACHE_KEY="perf:test"

echo "🚀 Performance Test: Cached vs Non-Cached"
echo "=========================================="

# Test 1: Non-cached
echo -e "\n❌ Without Cache:"
for i in 1 2 3; do
    redis_delete "$CACHE_KEY"  # Clear cache

    start=$(date +%s%N)
    curl -s "$API_URL" > /dev/null
    end=$(date +%s%N)

    duration=$(( (end - start) / 1000000 ))
    echo "  Request $i: ${duration}ms"
done

# Test 2: Cached
echo -e "\n✅ With Cache:"
# Pre-populate cache
cached_api_call "$CACHE_KEY" "$API_URL" 300 >/dev/null

for i in 1 2 3; do
    start=$(date +%s%N)
    redis_get "$CACHE_KEY" > /dev/null
    end=$(date +%s%N)

    duration=$(( (end - start) / 1000000 ))
    echo "  Request $i: ${duration}ms"
done

🎓 Best Practices

1. Cache Key Naming

# Good: Hierarchical, descriptive
cache_key="weather:singapore:daily"
cache_key="user:123:profile"
cache_key="api:github:rate_limit"

# Bad: Vague, collision-prone
cache_key="data"
cache_key="temp"

2. Error Handling

fetch_with_cache() {
    local key="$1"
    local url="$2"

    # Try cache first
    local cached
    cached=$(redis_get_json "$key")

    if [ "$cached" != "null" ]; then
        echo "$cached"
        return 0
    fi

    # Fetch with error handling
    local response
    response=$(curl -s --max-time 10 "$url")

    if [ $? -ne 0 ] || [ -z "$response" ]; then
        # Return stale cache if available (optional)
        echo "⚠️  API failed, no cache" >&2
        return 1
    fi

    # Cache successful response
    redis_cache_json "$key" "$response" 300
    echo "$response"
}

3. Cache Warming

# Pre-populate cache before peak hours
warm_cache() {
    echo "🔥 Warming cache..."

    # Pre-fetch common data
    cached_api_call "config:main" "$API_BASE/config" 3600 >/dev/null
    cached_api_call "users:top" "$API_BASE/users/top" 300 >/dev/null
    cached_api_call "prices:all" "$API_BASE/prices" 300 >/dev/null

    echo "✅ Cache warmed"
}

# Run on cron at 8 AM
0 8 * * * ~/scripts/warm-cache.sh

✅ Verification Checklist

Redis installed and running (redis-cli ping returns PONG)
Helper functions saved and executable
API calls include error handling
Appropriate TTL selected for each data type
Cache keys follow naming convention
Performance tested (cached vs non-cached)
Memory usage monitored (redis_stats)

🐛 Troubleshooting

Redis not running

# Check status
sudo systemctl status redis

# Start Redis
sudo systemctl start redis

# Auto-start on boot
sudo systemctl enable redis

Connection refused

# Check Redis is listening
netstat -tlnp | grep 6379

# Check firewall
sudo ufw allow 6379  # If needed locally

Memory issues

# Check memory usage
redis-cli info memory

# Set max memory in redis.conf
maxmemory 256mb
maxmemory-policy allkeys-lru  # Evict least recently used

Questions? Join the OpenClaw Discord ⚡

Redis Caching Pattern: Akselerasi API 10x dengan Cache yang Benar

⚡ Redis Caching Pattern for Speed

📊 Cache Flow Architecture

🔄 Cache Lifecycle Sequence

🎯 Before vs After

Real Numbers

🎯 What You'll Build

🛠️ Installation

Install Redis

Install Redis Client (Bash)

📋 Step 1: Create Helper Functions

📋 Step 2: Use Cases with Code Examples

Use Case 1: Gold/Price Caching

Use Case 2: Weather Caching

Use Case 3: Health Status Caching

Use Case 4: Session Caching

📋 Step 3: Complete Working Example

🔧 TTL (Time To Live) Guidelines

📊 Performance Testing

🎓 Best Practices

1. Cache Key Naming

2. Error Handling

3. Cache Warming

✅ Verification Checklist

🐛 Troubleshooting

Redis not running

Connection refused

Memory issues

Ada Pertanyaan? Yuk Ngobrol!

⚡ Redis Caching Pattern for Speed

📊 Cache Flow Architecture

🔄 Cache Lifecycle Sequence

🎯 Before vs After

Real Numbers

🎯 What You'll Build

🛠️ Installation

Install Redis

Install Redis Client (Bash)

📋 Step 1: Create Helper Functions

📋 Step 2: Use Cases with Code Examples

Use Case 1: Gold/Price Caching

Use Case 2: Weather Caching

Use Case 3: Health Status Caching

Use Case 4: Session Caching

📋 Step 3: Complete Working Example

🔧 TTL (Time To Live) Guidelines

📊 Performance Testing

🎓 Best Practices

1. Cache Key Naming

2. Error Handling

3. Cache Warming

✅ Verification Checklist

🐛 Troubleshooting

Redis not running

Connection refused

Memory issues

📚 Related Tutorials

Ada Pertanyaan? Yuk Ngobrol!
